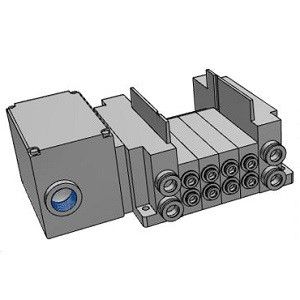

SMC SS5Y3-10TC-04BS-C6 4/5 port solenoid valve ss5y3 4 sta manifold base

SMC SS5Y3-10TC-04BS-C6 SY3000/5000/7000 Series 5 Port Solenoid Valve Plug-in Connector Connecting Base Terminal Block Box (Spring Type) Type 10/11

SMC
SKU:
SS5Y3-10TC-04BS-C6
$181.20
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

SY3000/5000/7000 Series 5 Port Solenoid Valve Plug-in Connector Connecting Base Terminal Block Box (Spring Type) Type 10/11

  • Thanks to the flow increase, valve size can be reduced;
  • Saves energy and space;
  • Power consumption: 0.1 w (With power saving circuit) / 0.35 w (Standard);
  • Service life: 200 million cycles (Metal seal) / 70 million cycles (Rubber seal);
  • Plug-in sub-plate newly added Plug-in metal base (IP40)/Plug-in connector ; connecting base (IP67);
  • Manifold type No.: SS5Y3, SS5Y5, SS5Y7
    • Additional Information
    Series:
    SY3000
    Type:
    Side Ported
    Kit Type:
    Spring Type Terminal Block Box
    Valve Stations:
    4 Stations
    P,E Port Entry:
    Both Sides
    SUP/EXH Block Assembly:
    Internal Pilot,Built-in Silencer
    A,B Port Size:
    Straight,Metric: 6 One-touch Fitting
    Mounting And Option:
    Direct Mounting,Without Name Plate,Without Station Number
    DIN Rail Option:
    With DIN Bracket,DIN Rail With Standard Length
