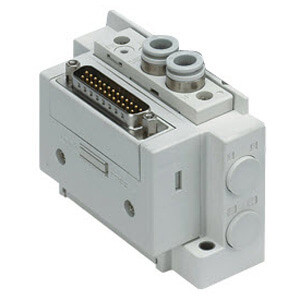

SMC SS5Y5-10FW1-04D-N7 SY3000·5000·7000 Series Plug-in Connector Connecting Base D-sub Connector Flat Ribbon Cable PC Wiring Type 10/11
SMC
$155.20
The SMC SS5Y5-10FW1-04D-N7 SY3000·5000·7000 Series Plug-in Connector is a versatile and efficient solution for your connectivity needs. This connecting base features a D-sub connector and flat ribbon cable, designed for PC wiring type 10/11. With its innovative design, the connector allows for a flow increase, enabling a reduction in valve size, which in turn saves both energy and space. It boasts a power consumption of just 0.1 watts with a power-saving circuit, or 0.35 watts in standard mode. The connector is built to last, with a service life of 200 million cycles for metal seals and 70 million cycles for rubber seals. The plug-in sub-plate includes a newly added plug-in metal base with an IP40 rating and a plug-in connector with an IP67 rating, ensuring durability and reliability. Compatible with manifold types SS5Y3, SS5Y5, and SS5Y7, this connector is an ideal choice for a wide range of applications.
- Series:
- SY5000
- Type:
- Side Ported
- Connector Type:
- D-sub Connector IP67 25 Pins
- Connector Entry Direction:
- Upward
- Valve Stations:
- 4 Stations
- P, E Port Outlets:
- D Side
- SUP/EXH Block Assembly Specifications:
- Standard/Internal Pilot Specification
- A/B Port Size:
- One-touch Fitting For 1/4
- Mounting And Option:
- Direct Mounting Option:None
