SMC

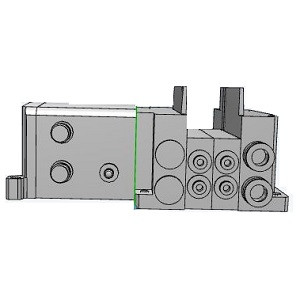

SMC SS5Y5-10S0-02U-C8 SY3000/5000/7000 Series 5 Port Solenoid Valve Plug-in Connector Connecting Base EX500 Gateway Decentralized System 2 (128 Points) Type 10/11

(No reviews yet) Write a Review
SKU:
SS5Y5-10S0-02U-C8
MPN:
SS5Y5-10S0-02U-C8
Condition:
New
Series:
SY5000
Type:
Side Ported
Kit Type:
Serial Transmission,EX500 Gateway Decentralized System 2 (128 Points)
SI Unit Specification:
Without SI Unit
Valve Stations:
2 Stations
P,E Port Entry:
U Side
SUP/EXH Block Assembly:
Internal Pilot
A,B Port Size:
Straight,Metric: 8 One-touch Fitting
Mounting And Option:
Direct Mounting,Without Name Plate,Without Station Number
DIN Rail Option:
With DIN Bracket,DIN Rail With Standard Length
  • SMC SS5Y5-10S0-02U-C8 4/5 port solenoid valve ss5y5 2 sta manifold base
  • SMC SS5Y5-10S0-02U-C8 SY3000/5000/7000 Series 5 Port Solenoid Valve Plug-in Connector Connecting Base EX500 Gateway Decentralized System 2 (128 Points) Type 10/11
$98.60

Description

SY3000/5000/7000 Series 5 Port Solenoid Valve Plug-in Connector Connecting Base EX500 Gateway Decentralized System 2 (128 Points) Type 10/11

  • Thanks to the flow increase, valve size can be reduced;
  • Saves energy and space;
  • Power consumption: 0.1 w (With power saving circuit) / 0.35 w (Standard);
  • Service life: 200 million cycles (Metal seal) / 70 million cycles (Rubber seal);
  • Plug-in sub-plate newly added Plug-in metal base (IP40)/Plug-in connector ; connecting base (IP67);
  • Manifold type No.: SS5Y3, SS5Y5, SS5Y7
