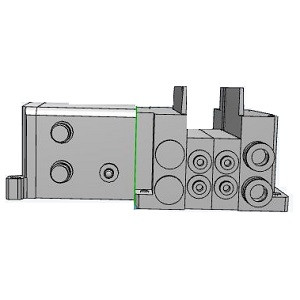

SMC SS5Y5-10SA3N-08BR-C8D SY3000/5000/7000 Series 5 Port Solenoid Valve Plug-in Connector Connecting Base EX500 Gateway Decentralized System 2 (128 Points) Type 10/11

SMC SS5Y5-10SA3N-08BR-C8D SY3000/5000/7000 Series 5 Port Solenoid Valve Plug-in Connector Connecting Base EX500 Gateway Decentralized System 2 (128 Points) Type 10/11

SMC
SKU:
SS5Y5-10SA3N-08BR-C8D
$433.20
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

SY3000/5000/7000 Series 5 Port Solenoid Valve Plug-in Connector Connecting Base EX500 Gateway Decentralized System 2 (128 Points) Type 10/11

  • Thanks to the flow increase, valve size can be reduced;
  • Saves energy and space;
  • Power consumption: 0.1 w (With power saving circuit) / 0.35 w (Standard);
  • Service life: 200 million cycles (Metal seal) / 70 million cycles (Rubber seal);
  • Plug-in sub-plate newly added Plug-in metal base (IP40)/Plug-in connector ; connecting base (IP67);
  • Manifold type No.: SS5Y3, SS5Y5, SS5Y7
    • Additional Information
    Series:
    SY5000
    Type:
    Side Ported
    Kit Type:
    Serial Transmission,EX500 Gateway Decentralized System 2 (128 Points)
    SI Unit Specification:
    32 Outputs,2 To 16 Stations(24 Stations),Negative Common
    Valve Stations:
    8 Stations
    P,E Port Entry:
    Both Sides
    SUP/EXH Block Assembly:
    External Oilot
    A,B Port Size:
    Straight,Metric: 8 One-touch Fitting
    Mounting And Option:
    DIN Rail Mounting,Without Name Plate,Without Station Number
    DIN Rail Option:
    With DIN Bracket,DIN Rail With Standard Length
