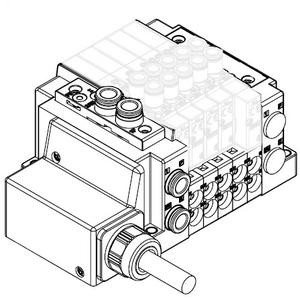

SMC SS5Y5-12L22-04UR-N Ss5Y5 4 Sta Manifold Base

SMC SS5Y5-12L22-04UR-N SY3000·5000·7000 Series Plug-in Connector Connecting Base Lead Wire Type12L

SMC
SKU:
SS5Y5-12L22-04UR-N
$184.20
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

SY3000·5000·7000 Series Plug-in Connector Connecting Base Lead Wire Type12L

  • Thanks to the flow increase, valve size can be reduced;
  • Saves energy and space;
  • Power consumption: 0.1 w (With power saving circuit) / 0.35 w (Standard);
  • Service life: 200 million cycles (Metal seal) / 70 million cycles (Rubber seal);
  • Plug-in sub-plate newly added Plug-in metal base (IP40)/Plug-in connector ; connecting base (IP67);
  • Manifold type No.: SS5Y3, SS5Y5, SS5Y7
    • Additional Information
    Series:
    SY5000
    Number Of Cores(Lead Wire):
    17 Cores
    Lead Wire Length:
    1.5 m
    Valve Stations:
    4 Stations
    P, E Port Outlets:
    U Side
    SUP/EXH Block Assembly Specifications:
    External Pilot
    P, E Port Size(One-touch Fittings):
    SY3000: 5/16"
    Mounting:
    Direct Mounting
