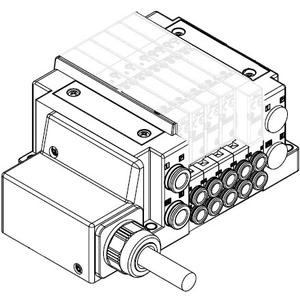

SMC SS5Y7-10L32-02DS-C8D0 SY3000·5000·7000 Series Series Plug-in Connector Connecting Base Lead Wire Type 10L/11L

SMC SS5Y7-10L32-02DS-C8D0 SY3000·5000·7000 Series Series Plug-in Connector Connecting Base Lead Wire Type 10L/11L

SMC
SKU:
SS5Y7-10L32-02DS-C8D0
$168.15
Condition:
New
Current Stock:
Description

SY3000·5000·7000 Series Series Plug-in Connector Connecting Base Lead Wire Type 10L/11L

  • Thanks to the flow increase, valve size can be reduced;
  • Saves energy and space;
  • Power consumption: 0.1 w (With power saving circuit) / 0.35 w (Standard);
  • Service life: 200 million cycles (Metal seal) / 70 million cycles (Rubber seal);
  • Plug-in sub-plate newly added Plug-in metal base (IP40)/Plug-in connector ; connecting base (IP67);
  • Manifold type No.: SS5Y3, SS5Y5, SS5Y7
    • Additional Information
    Series:
    SY7000
    Type:
    Side Ported
    Number Of Cores(Lead Wire):
    9 Cores
    Lead Wire Length:
    1.5 m
    Valve Stations:
    2 Stations
    P, E Port Outlets:
    D Side
    SUP/EXH Block Assembly Specifications:
    Internal Pilot,Built-in Silencer
    A/B Port Size:
    One-touch Fitting For 8
    Mounting And Option:
    DIN Rail Mounting, Without Name Plate, With bracket (without DIN rail)
