SMC SS5Y7-12L13-10US-ND11 4/5 port solenoid valve ss5y7 10 sta manifold base

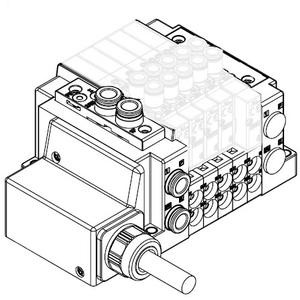

SMC SS5Y7-12L13-10US-ND11 SY3000·5000·7000 Series Plug-in Connector Connecting Base Lead Wire Type12L

SMC
SKU:
SS5Y7-12L13-10US-ND11
Availability:
Contact us to confirm availability and lead times.
$361.55
Condition:
New
Current Stock:
Description

SY3000·5000·7000 Series Plug-in Connector Connecting Base Lead Wire Type12L

  • Thanks to the flow increase, valve size can be reduced;
  • Saves energy and space;
  • Power consumption: 0.1 w (With power saving circuit) / 0.35 w (Standard);
  • Service life: 200 million cycles (Metal seal) / 70 million cycles (Rubber seal);
  • Plug-in sub-plate newly added Plug-in metal base (IP40)/Plug-in connector ; connecting base (IP67);
  • Manifold type No.: SS5Y3, SS5Y5, SS5Y7
    • Additional Information
    Series:
    SY7000
    Number Of Cores(Lead Wire):
    34 Cores
    Lead Wire Length:
    3 m
    Valve Stations:
    10 Stations
    P, E Port Outlets:
    U Side
    SUP/EXH Block Assembly Specifications:
    Internal Pilot,Built-in Silencer
    P, E Port Size(One-touch Fittings):
    SY3000: 5/16"
    Mounting:
    11 Stations
