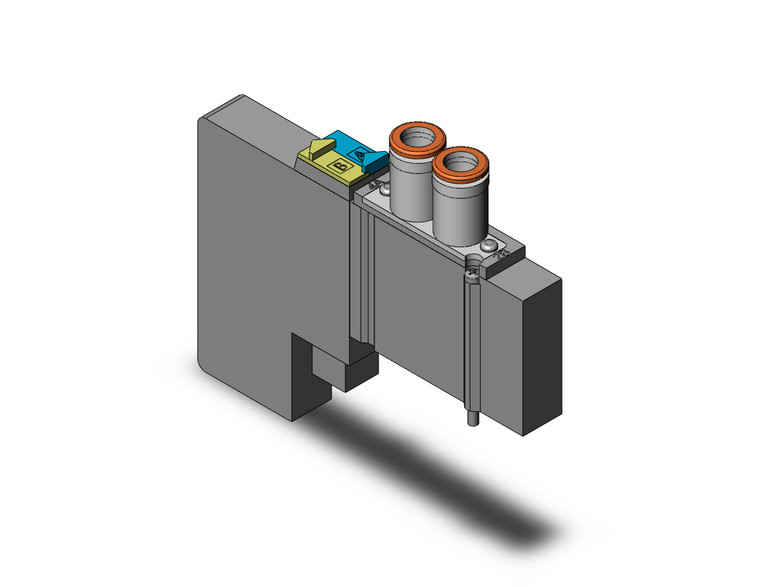

SMC SY3230-5UF1-N7 SY3000??5000??7000 Series Valve Top Ported Type
SMC
$60.30
The SMC SY3230-5UF1-N7 SY3000·5000·7000 Series Valve Top Ported Type is designed to optimize performance and efficiency. With an increased flow rate, this valve allows for a reduction in size, saving both energy and space. It features a power consumption of just 0.1 watts with a power-saving circuit and 0.35 watts in standard mode. The valve boasts an impressive service life, capable of 200 million cycles with a metal seal and 70 million cycles with a rubber seal. It includes a newly added plug-in sub-plate with a plug-in metal base (IP40) and a plug-in connector, as well as a connecting base (IP67). The manifold type numbers compatible with this valve are SS5Y3, SS5Y5, and SS5Y7, making it a versatile choice for various applications.
- Series:
- SY3000
- Type Of Actuation:
- 2 Position Double
- Seal:
- Rubber Seal
- Pilot Type:
- Internal Pilot
- Back Pressure Check Valve:
- None
- Pilot Valve Option:
- Standard (0.7 MPa)
- Coil Specifications:
- Standard
- Rated Voltage:
- 24 VDC
- Light/Surge Voltage Suppressor And Common Specification:
- With light/Surge Voltage Suppressor (Non-Polar)
- Manual Override:
- Slide Locking Type
- A/B Port Size:
- One-touch Fitting For 1/4
- Thread Type:
- Rc
- Type Of Mounting Screw:
- Round Head Combination Screw
