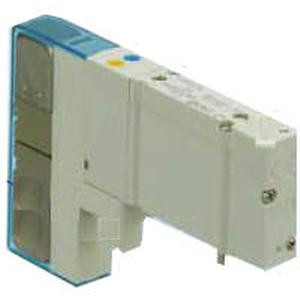

SMC SY5101B-5U1 SY3000·5000·7000 Series 5 Port Solenoid Valve Plug-in Type Base Mounted Valve Type

(No reviews yet) Write a Review
SKU:
SY5101B-5U1
MPN:
SY5101B-5U1
Condition:
New
Series:
SY5000
Type Of Actuation:
2 Position Single
Seal:
Metal Seal
Pilot Type:
Internal Pilot
Back Pressure Check Valve:
None
Pilot Valve Option:
Quick Response Type (0.7 Mpa)
Coil Specifications:
Standard
Rated Voltage:
24 VDC
Light/Surge Voltage Suppressor And Common Specification:
With light/Surge Voltage Suppressor (Non-Polar)
Manual Override:
Push-turn Locking Type
Type Of Mounting Screw:
Round Head Combination Screw
  • SMC SY5101B-5U1 Valve, 5 Port Solenoid
  • SMC SY5101B-5U1 SY3000·5000·7000 Series 5 Port Solenoid Valve Plug-in Type Base Mounted Valve Type
$63.40

Description

SY3000·5000·7000 Series 5 Port Solenoid Valve Plug-in Type Base Mounted Valve Type

  • Thanks to the flow increase, valve size can be reduced;
  • Saves energy and space;
  • Power consumption: 0.1 w (With power saving circuit) / 0.35 w (Standard);
  • Service life: 200 million cycles (Metal seal) / 70 million cycles (Rubber seal);
  • Plug-in sub-plate newly added Plug-in metal base (IP40)/Plug-in connector ;　connecting base (IP67);
  • Manifold type No.: SS5Y3, SS5Y5, SS5Y7
