SMC

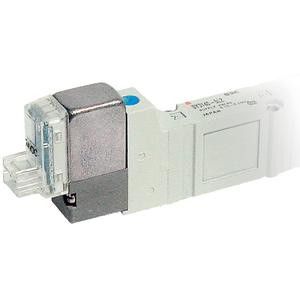

SMC SY7420-3LOZ-N11T-S valve, double sol, body pt, *lqa

(No reviews yet) Write a Review
SKU:
SY7420-3LOZ-N11T-S
Condition:
New
$82.50

Description

series sy offers major advances in valve performance for cost-effective solutions to your requirements. the series offers high flow with low power consumption in a compact design. the sy is available in body ported or base mounted styles and can be used individually or manifold mounted.

  • fluid: air
  • operating pressure range: (internal pilot) 0.1 - 0.7mpa
    (external pilot) -100kpa to 0.7mpa
    (external pilot, pilot pressure range) 0.25 - 0.7mpa
  • effective area mm 2 (cv): body ported 10.6 (0.59);
    base mounted 12.6 (0.7)
  • coil rated voltage: 3, 5, 6, 12, 24vdc;
    100, 110, 200, 220vac
  • response time (0.5mpa) w/o indicator light andamp;
    surge voltage suppressor: 32ms or less
  • ambient andamp; fluid temperature: 50 c
