Description

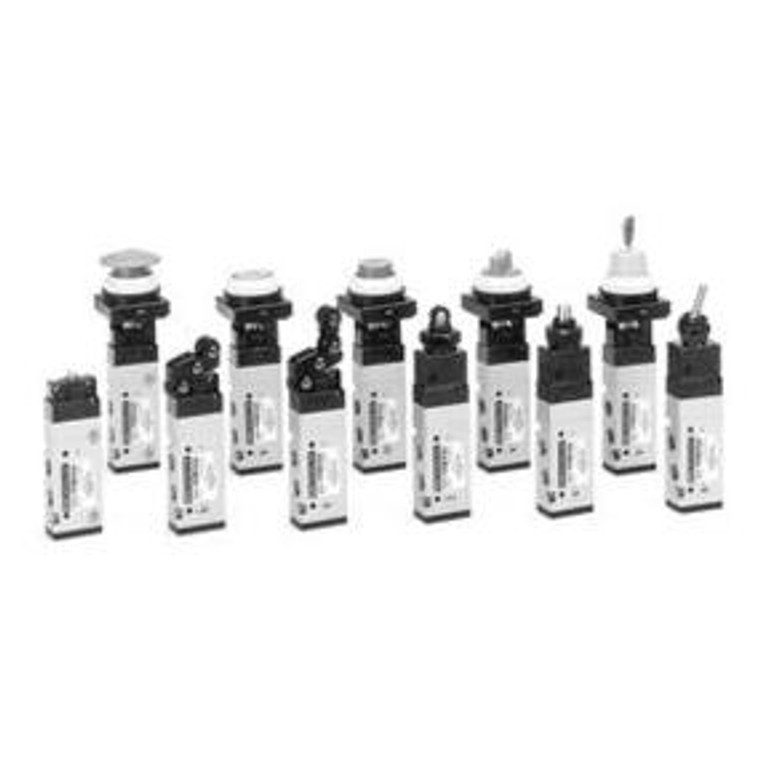

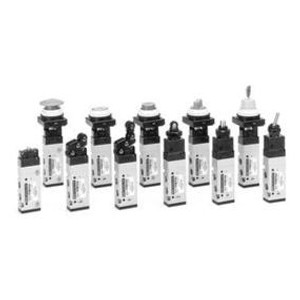

the vzm series is a 5 port mechanical valve. it is compact in design with a large flow capacity (vzm400 cv 0.55, vzm500 cv 0.6). the vzm is available in a metal or rubber spool style, with a variety of actuator choices and optional external pilot.
- fluid: air, inert gas
- operating pressure: 0.15 to 1.0mpa
- ambient and fluid temp: -5 to 60c (no freezing)
- effective area (cv): 0.55
- thread: npt
- port size: main valve 1/8, pilot valve (exh) m5x0.8
