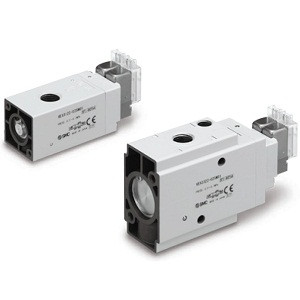

SMC VEX3221-5DZ1 VEX3 Series 3 Port 3 Position Valve Base Mounted Pilot Solenoid

SMC VEX3221-5DZ1 VEX3 Series 3 Port 3 Position Valve Base Mounted Pilot Solenoid

SMC
SKU:
VEX3221-5DZ1
Availability:
Contact us to confirm availability and lead times.
$126.90
Condition:
New
Current Stock:
Description

VEX3 Series 3 Port 3 Position Valve Base Mounted Pilot Solenoid

  • Intermediate stopping of cylinders up to 125 is possible.;
  • Power consumption: 1 W;
  • 3 Manual override options added; Locking slotted type; Push-turn locking slotted type; Push-turn locking lever type
    • Additional Information
    Body Size:
    22
    Operation Type:
    External Pilot Solenoid
    Port Size:
    Without Sub-plate
    Thread Type:
    Rc
    Rated Voltage:
    24 VDC
    Electrical Entry:
    DIN Terminal With Connector
    Light/Surge Voltage Suppressor:
    With Light/Surge Voltage Suppressor
    Manual Override:
    Non-locking Push Type
    Option:
    None
