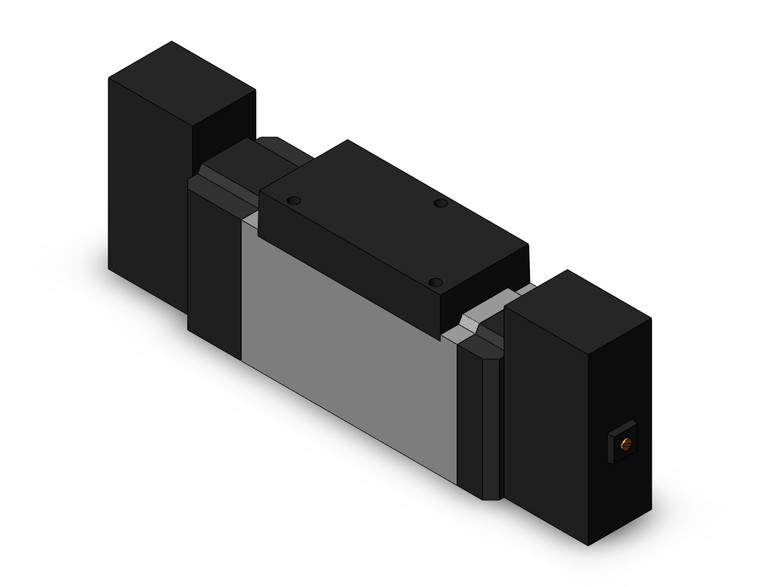

SMC VFS3300-3FZB 4/5 Port Solenoid Valve
- SKU:
- VFS3300-3FZB
- Condition:
- New
- Function:
- 3 Position Closed Center
- Body Style:
- Base Mounted Plug-in
- Body Option:
- Standard for Base Mounted Type
- Pilot:
- Internal Pilot
- Voltage:
- 110~120VAC 50/60HZ
- Lead Wire:
- Plug-in
- Surge Suppressor:
- Light & Surge Suppressor
- Manual Override:
- Locking Slotted Style
- Piping:
- Side
- Port Size:
- w/o Sub-plate
- Thread:
- Rc
Description

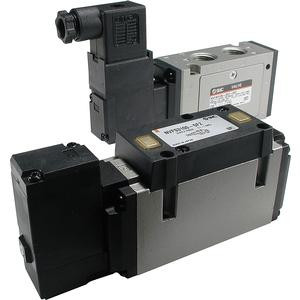

VFS3000, Body Ported & Base Mounted Type Valve
Series VFS consists of 5 port pilot solenoid valves with metal seals and base mounted or body ported type manifolds. Base mounted manifolds are available in plug-in and non plug-in styles. Body ported manifolds are available with bar or separate type manifold bases. Port sizes range from 1/8 to 3/4 with Rc(PT), NPTF G(PF) thread types available. Various options also available.
-
- VFS3000, body ported base mounted valves- Thread type: Rc(PT)
- Port sizes: 1/4, 3/8
- Maximum operating pressure: 9.9kgf/cm
- Ambient fluid temperature: -10 to 60 C
- Manual override: non locking push style
-
