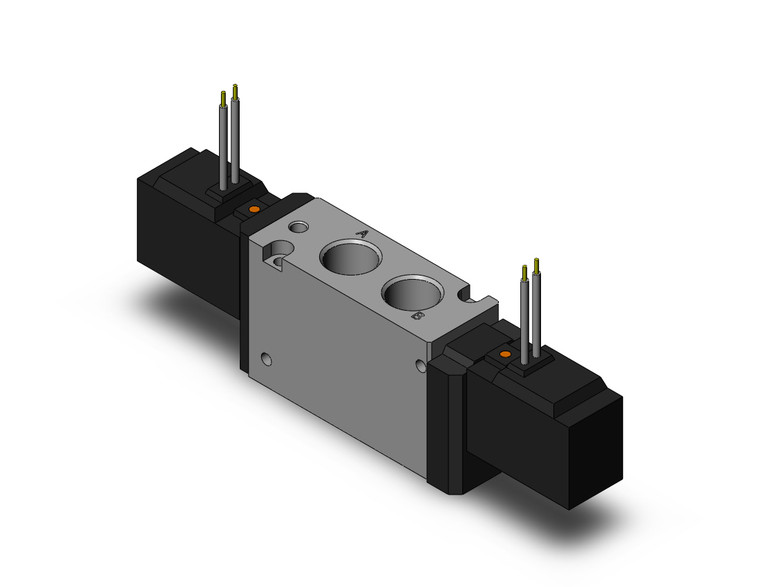

SMC VFS3330R-3G-03T 4/5 Port Solenoid Valve
- SKU:
- VFS3330R-3G-03T
- Condition:
- New
- Function:
- 3 (3 Position Closed Center)
- Body Style:
- 30 (Body Ported/Common Pilot EXH)
- Body Option:
- Body Ported Type
- Pilot:
- R (External Pilot)
- Voltage:
- 3 (110~120VAC 50/60HZ)
- Lead Wire:
- G (Grommet Lead Wire 0.3m)
- Surge Suppressor:
- None
- Manual Override:
- Non-locking Push Style (Flush)
- Piping:
- Side
- Port Size:
- 03 (Sub-plate Plug-in 1/8, Non Plug-in 3/8, Direct Ported P,A,B Ports 3)
- Thread:
- T (NPTF)
- Option:
- None
Description
series vfs consists of 5 port pilot solenoid valves with metal seals and base mounted or body ported type manifolds. base mounted manifolds are available in plug-in and non plug-in styles. body ported manifolds are available with bar or separate type manifold bases. port sizes range from 1/8 to 3/4 with rc(pt), nptf and g(pf) thread types available. various options also available.
- vfs3000, body ported and base mounted valves
- thread type: rc(pt)
- port sizes: 1/4, 3/8
- maximum operating pressure: 9.9kgf/cm2
- ambient and fluid temperature: -10 to 60 c
- manual override: non locking push style
