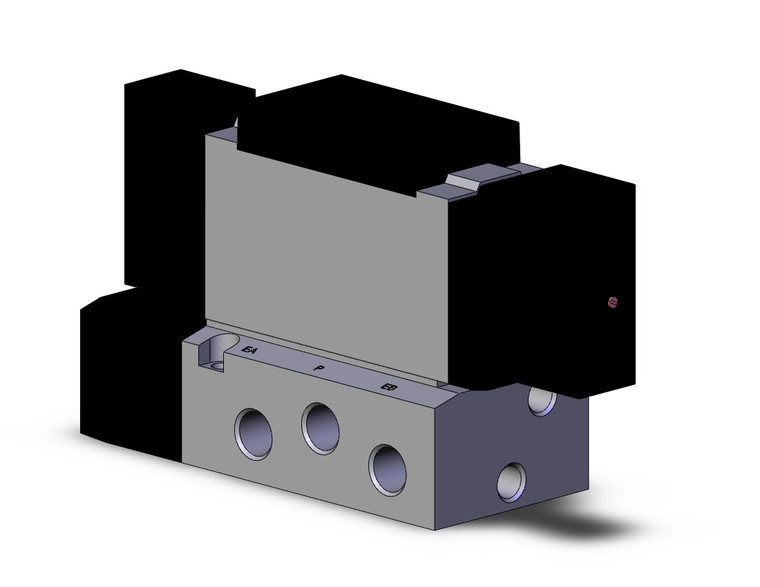

SMC VFS4200-5FZB-03T 5 Port Pilot Operated Valve

SMC VFS4200-5FZB-03T VFS4000 Series 5 Port Pilot Operated Solenoid Valve, Metal Seal, Plug-in

SMC
SKU:
VFS4200-5FZB-03T
Availability:
Contact us to confirm availability and lead times.
$169.90
Condition:
New
Current Stock:
Description

VFS4000 Series 5 Port Pilot Operated Solenoid Valve, Metal Seal, Plug-in

  • Metal seal main valve construction;
  • Extensive size variations;
  • For driving medium and large cylinders;
  • A wide variety of manifold options;
  • Compatible with control units (VFS2000/3000/4000, Base mounted type);
  • Manifold type No.: VV5FS1 VV5FS2 VV5FS3 VV5FS4 VV5FS5
    • Additional Information
    Symbol:
    2 Position Double
    Body Option:
    Standard
    Pilot Type:
    Internal Pilot
    Rated Voltage:
    24 VDC
    Option:
    With Light/Surge Voltage Suppressor
    Pilot Valve Manual Override:
    Locking Type (Tool Required)
    Porting Specifications:
    Side Ported or None
    Port Size:
    3/8
    Thread Type:
    NPTF
    CE-compliant:
    —
