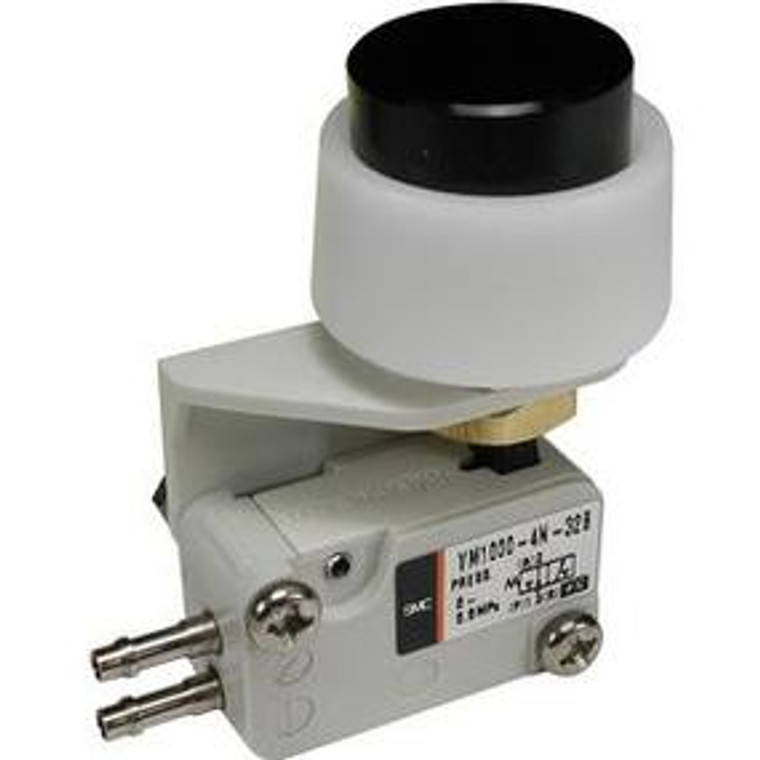

SMC VM1000 Series | SMC VM1000 Series | SMC VM1000-4N-08-X100 Mechanical Poppet Valve, NC, 1.0 CV, Side/Bottom Ported

the vm series is a mechanical, poppet valve. their compact size requires little mounting space. the vm series offers a wide variety of actuator styles and flow capacity up to 1.0 cv.

• fluid: air
• operating pressure: 5 to 0.8mpa
• effective area (cv): 1mm ² (0.055)
• style of valve: n.c. poppet
• number of ports: 2 or 3
• piping: side or bottom
