SMC VM130-01-34BA-B Mechanical Valve

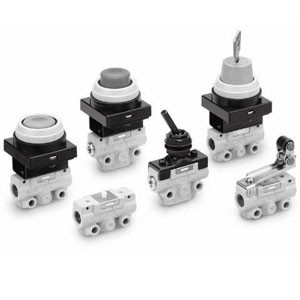

SMC VM130-01-34BA-B VM100-A Series 2/3 Port Mechanical Valve

SMC
SKU:
VM130-01-34BA-B
Availability:
Factory stock
$23.10
Condition:
New
Current Stock:
Description

VM100-A Series 2/3 Port Mechanical Valve

  • Lightweight VM100: 60 g (Conventional model: 95 g), VM200: 90 g (Conventional model: 111 g);
  • Mounting interchangeable with the conventional model;
  • Available in vacuum applications (VM100): 100 kPa to 1 Mpa (VM200: 0 to 1 MPa);
  • Mounting: Bracket mounting (New), Bottom mounting (New), Side mounting, Panel mounting;
  • With miniature indicator; Possible to check if air is output to the secondly port
    • Additional Information
    Number of Ports:
    3 Ports
    Piping Direction And The Length Of Push Rod:
    Side Ported
    Body Option:
    Side Mounting
    Port Size:
    Rc1/8
    Actuator Type:
    Twist Selector (2 Position)
    Suffix For Actuator:
    Color Of Push Button Selector:Red
    Suffix For indicator light:
    None
    Bracket Option:
    With Bracket
    Made To Order:
    Standard
