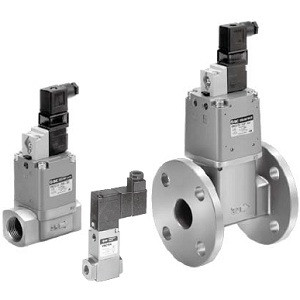

SMC VNC512A-N32A-5D VNC Series Process Coolant Valve External Pilot Solenoid

SMC VNC512A-N32A-5D VNC Series Process Coolant Valve External Pilot Solenoid

SMC
SKU:
VNC512A-N32A-5D
Availability:
Contact us to confirm availability and lead times.
$300.70
Condition:
New
Current Stock:
Description

VNC Series Process Coolant Valve External Pilot Solenoid

  • For controlling coolants (cutting fluid) used in machine tools;
  • Maximum operating pressure: 0.5 MPa, 1 MPa;
  • Air operated, external pilot solenoid
    • Additional Information
    Valve Size:
    Φ32mm(When N.C.at 1 Mpa,Orifice Diameter is Φ22mm)
    Valve Type:
    N.O.1MPa
    Seal Material:
    NBR Seals
    Thread Type:
    NPT
    Bore Size:
    1 1/4
    Rated Voltage:
    24 VDC
    Electrical Entry/With Light/Surge Voltage Suppressor:
    DIN Terminal
    Manual Override:
    Push-turn Locking Type
    Bracket:
    None
    CE-compliant:
    -
    Made To Order:
    Standard
