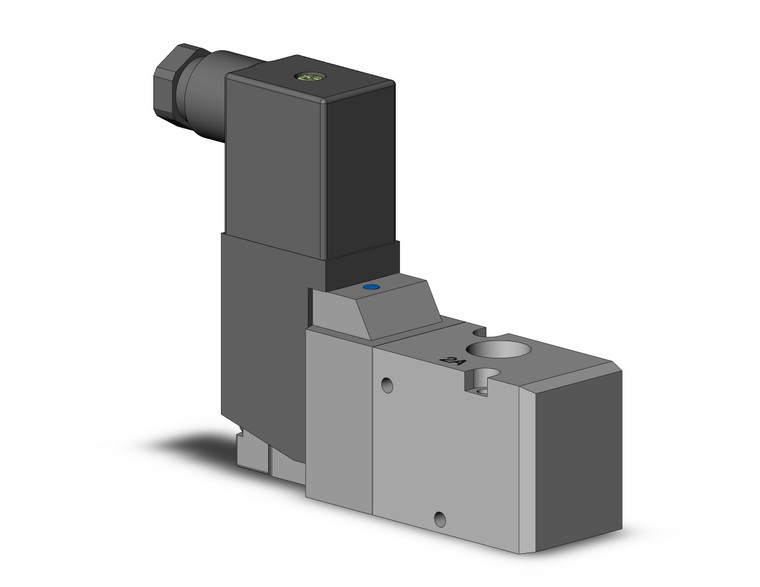

SMC VP342-5DZ1-02A Valve, Sol

SMC VP342-5DZ1-02A VP300/500/700 Series 3 Port Solenoid Valve Rubber Seal Pilot Poppet Type Body Ported Single Unit

SMC
SKU:
VP342-5DZ1-02A
Availability:
Factory stock: 61
$63.05
Condition:
New
Current Stock:
Description

VP300/500/700 Series 3 Port Solenoid Valve Rubber Seal Pilot Poppet Type Body Ported Single Unit

  • Built-in full-wave rectifier (AC);
  • Longer life expectancy: 50 million cycles or more;
  • Built-in strainer in the pilot valve;
  • External pilot type can be used for vacuum applications;
  • Manifold type No.: VV3P3?VV3P5?VV3P7
    • Additional Information
    Series:
    VP300
    Pilot Type:
    Internal Pilot
    Pressure Specification:
    Standard(0.7MPa)
    Coil Specifications:
    Standard
    Rated Voltage:
    24 VDC
    Electrical Entry:
    DIN Terminal
    Light/Surge Voltage Suppressor:
    With Light/Surge Voltage Suppressor
    Manual Override:
    Push-turn Locking Type
    Port Size:
    1/4
    Thread Type:
    Metric Thread (M5)/Rc
    Type Of Actuation:
    N.C.
    Bracket:
    None
    Made To Order:
    Standard
