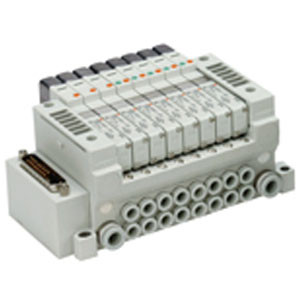

SMC VQ1101-11 5 Port Plug In Valve
SMC
$52.70
VQ1000 Series, VQ1*0*, 5 Port Solenoid Valve, Plug-in Type, Base Mounted, New Style
VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor.
-
- Fluid: air/inert gas- Operating pressure range: 0.1MPa - 0.7MPa(high pressure style 1.0MPa)
- Coil rated voltage: 12, 24VDC;100, 110, 200, 220VAC
- Ambient fluid temperature: -10 to 50 C
- Actuation:
- 1 (2 Position Single)
- Seal:
- 1 (Rubber Seal)
- Function:
- Standard (0.4W DC, AC)
- Coil Voltage:
- 1 (100VAC 50/60Hz)
- Light/Surge Suppressor:
- Yes
- Manual Override:
- Non-locking Push Style (Tool Required)
- CE Compliant:
- No
