<h2>VQ2000 Series, VQ2*0*, 5 Port Solenoid Valve, Plug-in, Base Mounted, New Style</h2><p><h3>VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor.<br>- </h3>- Fluid: air/inert gas<br>- Operating pressure range: 0.1 - 0.7MPa(high pressure type 1.0MPa)<br>- Coil rated voltage: 12, 24VDC;100, 110, 200, 220VAC<br>- Optional dual 3-port valves, 4 position (rubber seal type only)<p><a href="https://content2.smcetech.com/pdf/VQ.pdf" target="_blank">Series Catalog</a>

SMC VQ2401-5B1 5 Port Plug In Valve

SMC
SKU:
VQ2401-5B1
Availability:
Factory Stock
$93.35
Condition:
New
Current Stock:
Description

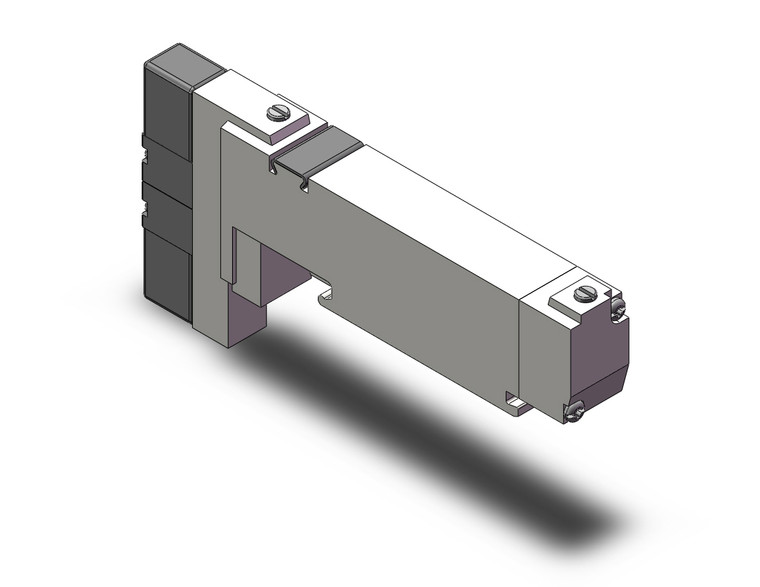

VQ2000 Series, VQ2*0*, 5 Port Solenoid Valve, Plug-in, Base Mounted, New Style

VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor.
-

- Fluid: air/inert gas
- Operating pressure range: 0.1 - 0.7MPa(high pressure type 1.0MPa)
- Coil rated voltage: 12, 24VDC;100, 110, 200, 220VAC
- Optional dual 3-port valves, 4 position (rubber seal type only)

Series Catalog

AutoCAD File

Additional Information
Actuation:
3 Position Exhaust Center
Seal:
Rubber Seal
Function:
0.4W DC, AC
Coil Voltage:
24VDC
Light & Surge Suppressor:
Yes
Manual Override:
Locking, Tool Required
Enclosure:
Dust Protected
Thread:
or NIL in the Case of No Sub-plate
CE Compliant:
No
