SMC VQ4301R-51-03N 4/5 port solenoid valve vq valve

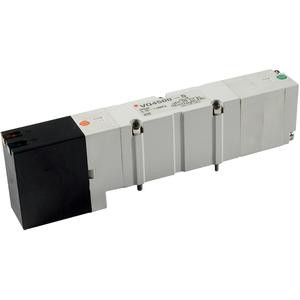

SMC VQ4301R-51-03N VQ4000 Series Base Mounted Plug-in/Plug Lead

SMC
SKU:
VQ4301R-51-03N
$122.35
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

VQ4000 Series Base Mounted Plug-in/Plug Lead

  • Compact and large flow capacity; Installation volume: 42% Reduction, Installation area 26% Reduction; VQ4000: Possible to drive cylinders up to 160; VQ5000: Possible to drive cylinders up to 180;
  • Power saving Power consumption: 0.4 W (Low wattage type);
  • Long service life: 100 million cycles (According to SMC life test conditions)
    • Additional Information
    Type Of Actuation:
    3 Position Closed Center
    Body Type:
    Plug-in Sub-plate
    Seal:
    Rubber Seal
    Function:
    External Pilot
    Coil Voltage:
    24 VDC
    Light/Surge Voltage Suppressor:
    Yes
    Manual Override:
    Non-locking Push Type (Tool Required)
    Enclosure:
    Dust-protected
    Porting Specifications:
    Side Ported
    Port Size:
    3/8
    Thread Type:
    NPT
    CE-compliant:
    -
