SMC VQ5350-5H1 Vq Valve

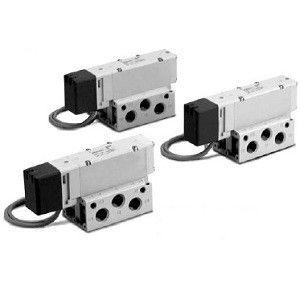

SMC VQ5350-5H1 VQ5000 Series Base Mounted Plug-in/Plug Lead

SMC
SKU:
VQ5350-5H1
Availability:
Contact us to confirm availability and lead times.
$161.15
Condition:
New
Current Stock:
Description

VQ5000 Series Base Mounted Plug-in/Plug Lead

  • Compact and large flow capacity; Installation volume: 42% Reduction, Installation area 26% Reduction; VQ4000: Possible to drive cylinders up to Φ160; VQ5000: Possible to drive cylinders up to Φ180;
  • Power saving Power consumption: 0.4 W (Low wattage type);
  • Long service life: 100 million cycles (According to SMC life test conditions)
    • Additional Information
    Type Of Actuation:
    3 Position Closed Center
    Body Type:
    Plug Lead Sub-plate
    Seal:
    Metal Seal
    Function:
    Standard (0.95 W)
    Coil Voltage:
    24 VDC
    Electrical Entry:
    Grommet:Lead Wire Length 1.5 m
    Light/Surge Voltage Suppressor:
    Yes
    Manual Override:
    Non-locking Push Type (Tool Required)
    Enclosure:
    Dust-protected
    Porting Specifications:
    Side Ported
    Bore Size:
    Without Sub-Plate(For Manifold)
    Thread Type:
    Rc
    CE-compliant:
    -
