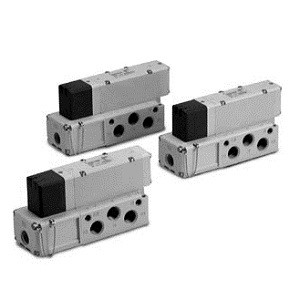

SMC VQC5501-51 4/5 Port Solenoid Valve

SMC VQC5501-51 VQC5000 Series 5 Port Solenoid Valve Base Mounted Plug-in

SMC
SKU:
VQC5501-51
Availability:
Factory stock: 74
$115.50
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

VQC5000 Series 5 Port Solenoid Valve Base Mounted Plug-in

  • Compact and large flow capacity; VQC4000: Possible to drive cylinders up to ?160; VQC5000: Possible to drive cylinders up to ?180;
  • Extensive range of protocols available;
  • Power saving Power consumption: 0.4 W (Low wattage type);
  • Long service life: 100 million cycles (According to SMC life test conditions);
  • Enclosure IP67 compliant
    • Additional Information
    Type Of Actuation:
    3 Position Pressure Center
    Body:
    Plug-in Sub-plate
    Seal Method:
    Rubber Seal
    Function:
    Standard (0.95 W)
    Coil Voltage:
    24 VDC
    Light/Surge Voltage Suppressor:
    Yes
    Manual Override:
    Non-locking Push Type (Tool Required)
    Porting Specifications:
    Side Ported
    Bore Size:
    Without Sub-plate(For Manifold)
    Thread Type:
    Rc
