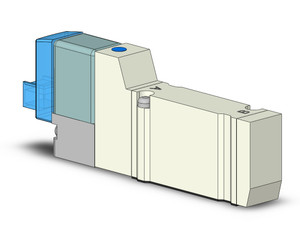

SMC VQZ1151-5LO1-Q 1000 Series 5 Port Valve
SMC
$45.80

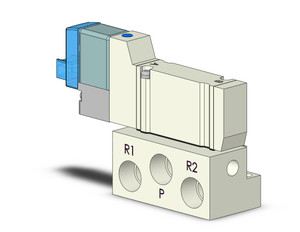

VQZ**5*, 1000/2000/3000 Series, 5 Port Solenoid Valve, Base Mounted
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
-
- Fluid: air/inert gas- Operating pressure range: 0.1 - 0.7MPa(high pressure type 1.0MPa)
- Effective area mm 2 (Cv):metal seal 2.2 (0.12) - 16.2 (0.9); rubber seal 3.6 (0.2) - 21.6 (1.2)
- Coil rated voltage: 12, 24VDC;100, 110, 200, 220VAC
- Response time (ms) standard 1W, high pressure 1.5W:metal seal 25 or less; rubber seal 30 or less
- Ambient fluid temperature: -10 to 50 C
-
- Series:
- 1 (VQZ1000)
- Composite Symbol:
- 1 (2 Position Single)
- Seal Type:
- 1 (Rubber Seal)
- Function:
- Standard (0.35W DC, AC)
- Coil Voltage:
- 5 (24VDC)
- Lead Wire:
- LO (L Plug w/o Connector)
- Manual Override:
- Non-locking Push Style
- IP65 Compliant:
- No
- Port Size:
- w/o Sub-plate
- Q:
- Q (CE Marked)
