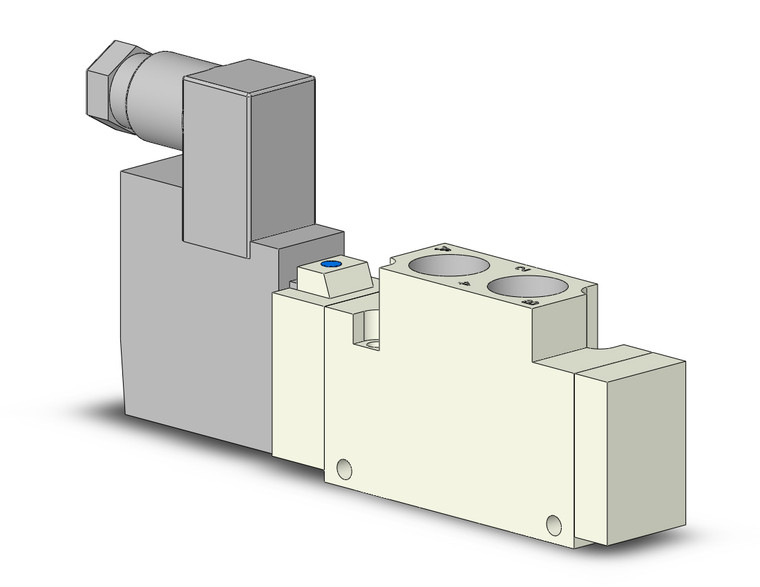

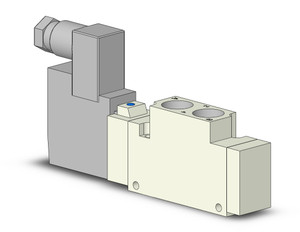

VQZ**2*, 1000/2000/3000 Series, 5 Port Solenoid Valve, Body Ported
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
-
- Fluid: air, inert gas- Operating pressure range: 0.1 - 0.7MPa
- Effective area mm 2 (Cv):metal seal 2.0 (0.11) - 12.6 (0.7);rubber seal 3.1 (0.17) - 16.2 (0.9)
- Coil rated voltage: 12, 24VDC;100, 110, 200, 220VAC
- Response time (ms) standard 1W, high pressure 1.5W:metal seal 25 or less; rubber seal 30 or less
- Ambient fluid temperature: -10 to 50 C
-
- Series:
- 3 (VQZ3000)
- Configuration:
- 1 (2 Position Single)
- Seal Type:
- 1 (Rubber Seal)
- Function:
- Standard (0.35W DC, AC)
- Coil Voltage:
- 5 (24VDC)
- Lead Wire:
- YZ (DIN Terminal w/Light & Surge Suppressor)
- Manual Override:
- Non-locking Push Style
- IP65 Compliant:
- No
- Port Size:
- 02 (Rc1/4)
- Thread:
- N (NPT)
- Foot Bracket:
- None
- CE Compliant:
- No
