Description

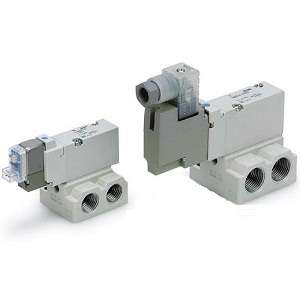

VQZ**5, 200/300 Series, 3 Port Solenoid Valve, Base Mounted
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
-
- Fluid: air, inert gas- Operating pressure range: 0.1 - 0.7MPa(high pressure style 1.0MPa)
- Cv factor: VQZ200 0.55 - 0.7; VQZ300 0.85 - 1.2
- Coil rated voltage: 12, 24VDC;100, 110, 200, 220VAC
- Response time:VQZ200 metal seal 14ms or less; rubber seal 15ms or lessVQZ300 metal seal 17ms or less; rubber seal 25ms or less
-
Additional Information
Series: |
VQZ300 |
Composite Symbol: |
Metal Seal N.C. |
Function: |
0.35W DC, AC |
Coil Voltage: |
24VDC |
Lead Wire: |
L Plug Connector w/Lead Wire 0.3m |
Manual Override: |
Non-locking Push Style |
1: |
01 |
Port Size: |
w/o Sub-plate |
CE Compliant: |
No |
