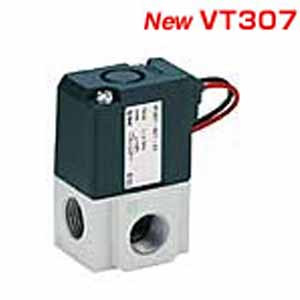

SMC VT307V-5G1-02N-F Body Ported 3 Port Valve

SMC VT307V-5G1-02N-F VT307 Series 3 Port Solenoid Valve Direct Operated Poppet Type Rubber Seal

SMC
SKU:
VT307V-5G1-02N-F
$25.85
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

VT307 Series 3 Port Solenoid Valve Direct Operated Poppet Type Rubber Seal

  • Low power consumption type: 1.8 W;
  • A variety of valve functions provided by a single valve; (Universal porting);
  • Low ozone concentration countermeasure part; Rubber material: HNBR is used in main valve;
  • Has mounting compatibility with conventional products;
  • Manifold type No.: VV307
    • Additional Information
    Body Type:
    Body Ported
    Valve Option:
    Vacuum Specification Type
    Pressure Specification:
    Standard Tpye 0.7MPA
    Rated Voltage:
    24 VDC
    Electrical Entry:
    Grommet Lead Wire Length 300 mm
    Light/Surge Voltage Suppressor:
    None
    Bore Size:
    1/4 8A
    Thread Type:
    NPT
    Bracket:
    With Bracket
    CE-compliant:
    None
