Description

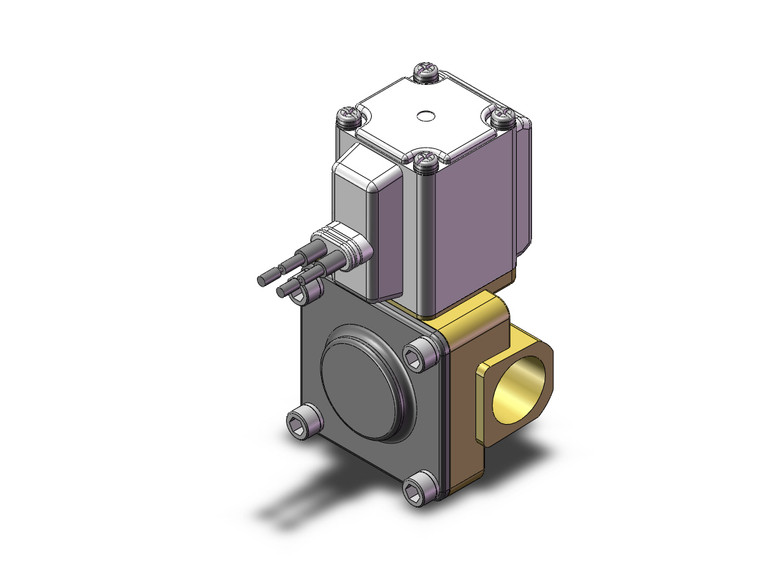

VXD2*6, Pilot Operated, 2 Port Solenoid Valve for High Temperature Oil
SMC s updated VXD series for oil (viscosity not exceed 50mm /s) is a pilot operated, 2 port solenoid valve. FKM seal material and Class H coil insulation to suit the high fluid temperature application are standard. Available in brass and stainless steel. Flow rate ranges from Cv of 1.9 to 49
-
- IP65 enclosure- For use with high temperature oil, viscosity not exceed 50mm /s
- Fluid temperature: -5 to 100 C
- Class H coil insulation
- Port size: 1/4 to 1 inch. Flange: 32A to 50A
