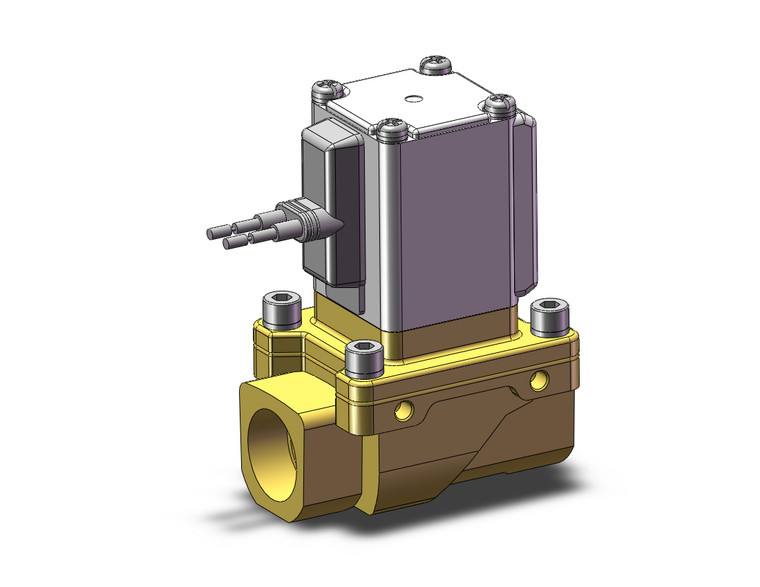

SMC VXZ240FFB Pilot Op 2 Port Solenoid Valve, (N.C.)

SMC VXZ240FFB VXZ Series Zero Differential Pressure Type Pilot Operated 2 Port Solenoid Valve For Air

SMC
SKU:
VXZ240FFB
Availability:
Contact us to confirm availability and lead times.
$88.70
Condition:
New
Current Stock:
Description

VXZ Series Zero Differential Pressure Type Pilot Operated 2 Port Solenoid Valve For Air

  • For air, water, oil, heated water, high temperature oil;
  • Body material: Aluminum, resin, C37, Stainless steel;
  • With One-touch fittings (resin body) type is available;
  • IP65
    • Additional Information
    Size-Valve Type:
    Body Size:15A
    Body Material/Port Size/Orifice Diameter:
    Body Material:C37,Port Size:1/2,Orifice Diameter:15
    Voltage/Electrical Entry:
    Voltage:24 VDC,Electrical Entry:Grommet With Surge Voltage Suppressor
    Special Voltage-Electrical Entry/Electrical Option:
    None
    Other Option:
    Low Concentration Ozone Resistant And Applicable To Deionized Water(Seal Material:FKM):Not Complian,Oil-Free:Not Complian,Port Thread:NPT
    Installation Options:
    None
    Special Electrical Entry Direction:
    IN Side(Standard)
