SMC

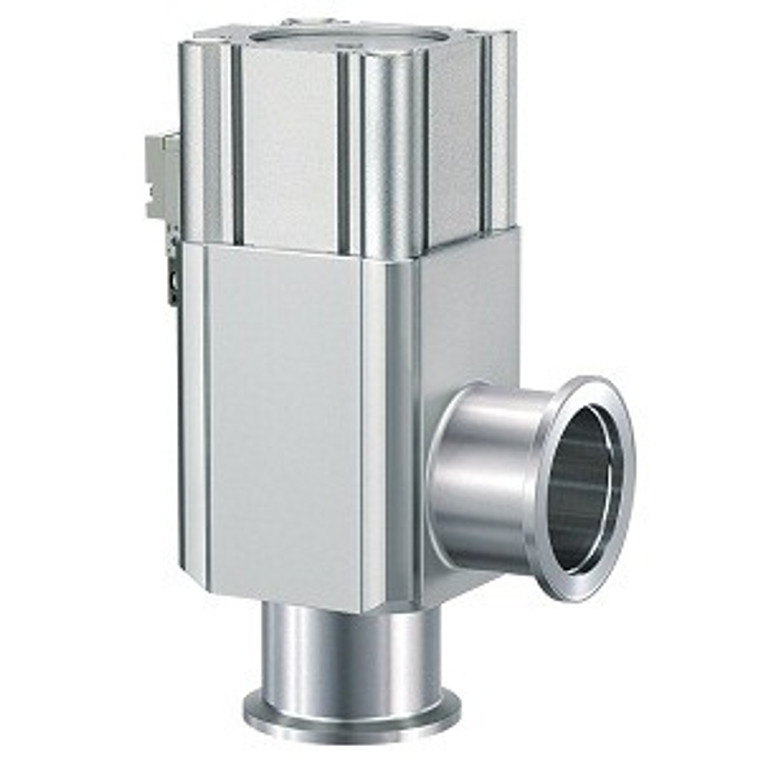

SMC XLAV-40F-2M9BLA-5HS XLAV Series Aluminum High Vacuum Angle Valve Air Operated, With Solenoid Valve

(No reviews yet) Write a Review
SKU:
XLAV-40F-2M9BLA-5HS
MPN:
XLAV-40F-2M9BLA-5HS
Condition:
New
Flange Size:
40
Flange Type:
KF(NW)
Indicator/Solenoid Valve Direction:
With Indicator,Left Flange Surface
Auto Switch Type:
Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
Number Of Auto Switches/Detecting Position:
Quantity:2 pcs.
Rated Voltage:
24 VDC
Electrical Entry:
Grommet (Lead Wire Length 600 mm)
Light/Surge Voltage Suppressor:
With Surge Voltage Suppressor
Body Surface Treatment:
External:Hard Anodized Internal:Raw Material
Seal Material:
Seal Material:FKM
Part Numbers Indicating Changed Seal Material And Leakage:
Changed Part:-
CE-compliant:
-
$486.00

Description

XLAV Series Aluminum High Vacuum Angle Valve Air Operated, With Solenoid Valve

  • Aluminum bodied; Uniform baking temperature; Lightweight, Compact; Minimal outgassingr; Minimal contamination from heavy metals;
  • Possible to replace the bellows
