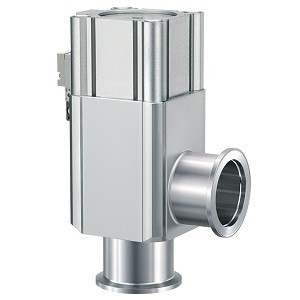

SMC XLAV-40L-2A93A-5GU XLAV Series Aluminum High Vacuum Angle Valve Air Operated, With Solenoid Valve

SMC XLAV-40L-2A93A-5GU XLAV Series Aluminum High Vacuum Angle Valve Air Operated, With Solenoid Valve

SMC
SKU:
XLAV-40L-2A93A-5GU
$445.00
Condition:
New
Current Stock:
Description

XLAV Series Aluminum High Vacuum Angle Valve Air Operated, With Solenoid Valve

  • Aluminum bodied; Uniform baking temperature; Lightweight, Compact; Minimal outgassingr; Minimal contamination from heavy metals;
  • Possible to replace the bellows
    • Additional Information
    Flange Size:
    40
    Flange Type:
    KF(NW)
    Indicator/Solenoid Valve Direction:
    Without Indicator,Rear Flange Surface
    Auto Switch Type:
    Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V,AC100V
    Number Of Auto Switches/Detecting Position:
    Quantity:2 pcs.
    Rated Voltage:
    24 VDC
    Electrical Entry:
    Grommet (Lead Wire Length 300 mm)
    Light/Surge Voltage Suppressor:
    With Light/Surge Voltage Suppressor(Non-polar Type)
    Body Surface Treatment:
    External:Hard Anodized Internal:Raw Material
    Seal Material:
    Seal Material:FKM
    Part Numbers Indicating Changed Seal Material And Leakage:
    Changed Part:-
    CE-compliant:
    -
