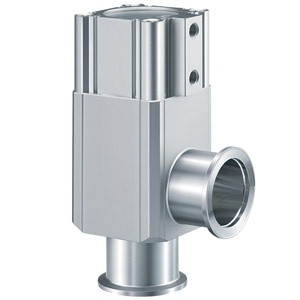

SMC XLC-40H0-2-XAQ1E XLC-2 Series Aluminum High Vacuum Angle Valve Double Acting, Bellows Seal

SMC XLC-40H0-2-XAQ1E XLC-2 Series Aluminum High Vacuum Angle Valve Double Acting, Bellows Seal

SMC
SKU:
XLC-40H0-2-XAQ1E
Availability:
Contact us to confirm availability and lead times.
$780.00
Condition:
New
Current Stock:
Description

XLC-2 Series Aluminum High Vacuum Angle Valve Double Acting, Bellows Seal

  • Aluminum bodied; Uniform baking temperature; Lightweight, Compact; Minimal outgassingr; Minimal contamination from heavy metals;
  • Possible to replace the bellows
    • Additional Information
    Flange Size:
    40
    Flange Type:
    KF(NW)
    Pilot Port Direction:
    Flange Side
    Temperature Specifications/Heater:
    5 To 150 ,Without Heater
    Auto Switch Type:
    Without Auto Switch (Without Built-in Magnet)
    Number Of Auto Switches/Detecting Position:
    Quantity:Without Auto Switch
    Body Surface Treatment:
    External:Hard Anodized Internal:Oxalic Acid Anodized
    Seal Material:
    Seal Material:Kalrez
    Part Numbers Indicating Changed Seal Material And Leakage:
    Changed Part:Valve Seal 1(Maintenance Part),Exterior Seal (Maintenance Part)
