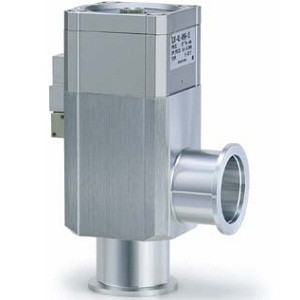

SMC XLDV-80DL-M9NLA-5GS XLDV Series Aluminum High Vacuum Angle Valve Air Operated/With Solenoid Valve

SMC XLDV-80DL-M9NLA-5GS XLDV Series Aluminum High Vacuum Angle Valve Air Operated/With Solenoid Valve

SMC
SKU:
XLDV-80DL-M9NLA-5GS
$1,914.60
Condition:
New
Current Stock:
Description

XLDV Series Aluminum High Vacuum Angle Valve Air Operated/With Solenoid Valve

  • Strong against fluorine;
  • Minimal gas emissions;
  • Minimal heavy metal contamination
    • Additional Information
    Flange Size:
    80
    Flange Type:
    K(DN)
    Solenoid Valve Direction:
    Rear Flange Surface
    Auto Switch Type:
    Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches/Detecting Position:
    Quantity:2 pcs.
    Rated Voltage:
    24 VDC
    Electrical Entry:
    Grommet Lead Wire Length 300 mm
    Light/Surge Voltage Suppressor:
    With Surge Voltage Suppressor
    Body Surface Treatment:
    External:Hard Anodized Internal:Raw Material
    Seal Material:
    Seal Material:FKM
    Seal Material Changed Part And Leakage:
    Changed Part:-
    CE-compliant:
    -
