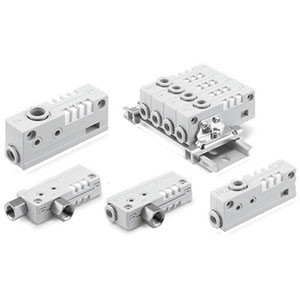

SMC ZH10BLA-N01-N01 Vacuum Ejector Body Ported Type/Box Type (Built-in Silencer)

The SMC ZH10BLA-N01-N01, part of the ZH Series, is a compact and lightweight vacuum ejector designed for integration in advanced pneumatic vacuum systems. Offering both body ported and box type configurations with a built-in silencer, this model is engineered to optimize vacuum generation while reducing noise emissions in demanding industrial applications.

• Nozzle Diameter Options: Enhanced with nozzle sizes of ø1.5 mm, ø1.8 mm, and ø2.0 mm for the box type, expanding capability to accommodate a broad range of vacuum flow requirements and improving adaptability across varied operational environments.
• Compact and Lightweight Design: The series achieves up to an 11% reduction in overall length and a significant 25% decrease in port height, contributing to a maximum volume reduction of 39%. This compact footprint enables efficient space utilization in equipment assemblies and mobile applications, while reducing inertia and weight burden.
• Mounting Versatility: Equipped with four standard mounting options—direct mounting, standard bracket, L-bracket, and DIN rail—facilitating flexible installation tailored to diverse manufacturing and automation setups.
• Integrated Silencer and Brackets: The body ported type features an integrated silencer that minimizes exhaust noise, enhancing workplace environmental comfort. A standard bracket is also available for secure and stable mounting. These features contribute to streamlined system design without sacrificing performance efficiency.

Designed for a supply pressure of 0.45 MPa, the ZH10BLA-N01-N01 supports vacuum pressures up to approximately –88 kPa (Type S). Its high suction flow rates combined with optimized air consumption make it an ideal choice for precise vacuum applications such as pick-and-place, packaging, and material handling in industrial automation.

Constructed with composite resin for nozzle and body, this ejector balances durability with weight reduction, positioning it as a leading solution within the vacuum technology sector. It complies with RoHS directives, ensuring environmental compliance alongside high functional performance.
