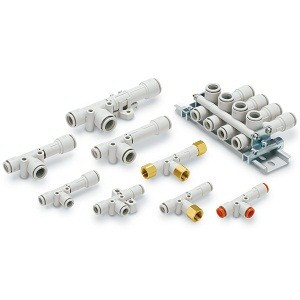

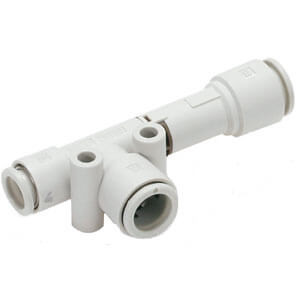

SMC ZH15DLA-09-N03-11 ZH Series Body Ported Type Vacuum Ejector

The SMC ZH15DLA-09-N03-11 vacuum ejector from the ZH series is engineered for precision vacuum generation in compact industrial and manufacturing applications. Featuring a body ported design, this ejector offers superior mounting flexibility and performance efficiency.

• Expanded Nozzle Diameter Options: This model incorporates newly added nozzle sizes of 1.5 mm, 1.8 mm, and 2.0 mm, enhancing suitability across a wider range of vacuum flow and suction demands compared to previous box type variants.
• Compact & Lightweight Construction: Designed for space-saving integration, the unit achieves up to an 11% reduction in overall length and a 25% decrease in port height, resulting in up to 39% volume savings. These dimensional optimizations reduce inertia and facilitate easier installation in confined setups.
• Versatile Mounting Configurations: Four distinct mounting types are supported: direct mounting, standard bracket, L-bracket, and DIN rail mounting. This ensures adaptability to diverse equipment layouts and installation preferences.
• Optional Accessories: Available silencer and standard bracket accessories (exclusive to body ported type) enable noise reduction at exhaust ports and streamlined mounting solutions, respectively, further enhancing operational efficiency and ease of implementation.

This vacuum ejector operates optimally at a supply pressure of 0.45 MPa, offering a maximum vacuum pressure of approximately ?88 kPa. The body ported configuration supports efficient air consumption with enhanced flow characteristics essential for automation and material handling systems.
