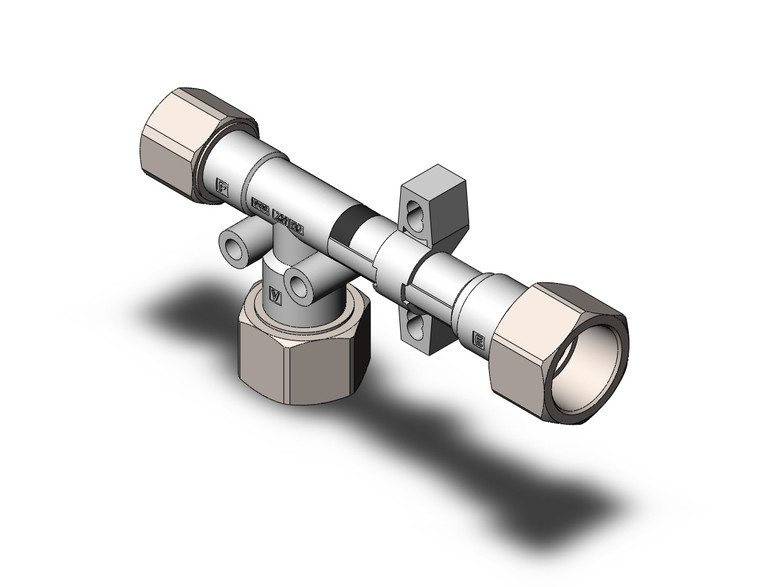

SMC ZH15DLA-N02-N03-N03 Vacuum Ejector

SMC ZH15DLA-N02-N03-N03 ZH Series Body Ported Type Vacuum Ejector

SMC
SKU:
ZH15DLA-N02-N03-N03
Availability:
Factory stock: 3
$33.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

ZH Series Body Ported Type Vacuum Ejector

  • Nozzle sizes: Φ1.5, Φ1.8, and Φ2.0 have been added to the box type.[New];
  • Compact and lightweight; Overall length: Max. 11% reduction; Port height: Max. 25% reduction; Volume: Max. 39% reduction;
  • 4 mounting types;
  • A silencer and standard bracket are available. (Body ported type only)
    • Additional Information
    Nozzle Diameter:
    Φ1.5 mm
    Body:
    Body Ported
    Vacuum Pressure Reached:
    -48kPa (ZH05 To 13D A)
    SUP. Port Size:
    NPT1/4 Female Thread
    VAC. Port Size:
    NPT3/8 Female Thread
    EXH. Port Size:
    NPT3/8 Female Thread
    Accessory:
    With Standard bracket,Without Silencer
