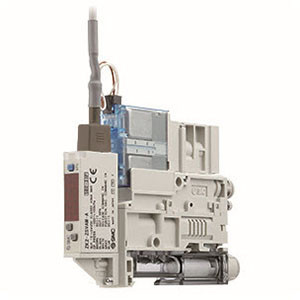

SMC ZK2P00J5DLA-06-B ZK2A Series Vacuum Pump System

The SMC ZK2P00J5DLA-06-B is a high-performance single unit vacuum pump system from the ZK2A series, engineered for industrial applications requiring reliable vacuum generation with integrated valve control and without an energy-saving function.

• Supply Valve (N.O. Specification): Features a newly added normally open (N.O.) supply valve that maintains vacuum integrity even during power interruptions or outages. This design prevents sudden loss of vacuum, ensuring consistent handling of workpieces under maintained supply pressure conditions .
• IO-Link Compatible Pressure Switch: Equipped with an advanced pressure switch supporting IO-Link communication, enabling centralized ejector control via a single communication line. This facilitates easy reading of device information and batch parameter programming, enhancing integration and diagnostics .
• System Compatibility: Compatible with both ejector systems and vacuum pump systems, offering flexibility and ease of integration into various vacuum applications .
• Energy Saving Functionality: Although this specific model lacks the energy-saving mode, the ZK2A series typically reduces air consumption by 93% under equivalent models with this feature via an automatic air supply cut-off once the target vacuum is achieved. This results in significant operational cost savings on compressed air .
• Enhanced Suction Flow: The ejector system achieves a 50% increase in suction flow compared to conventional single-stage ejectors, maximizing vacuum efficiency and improving overall system performance .
• Noise Reduction: Incorporates a high-noise reduction silencer designed to minimize acoustic emissions and exhaust noise levels, supporting quieter operation without compromising vacuum performance .

Technical Highlights:

• Compact, lightweight design with multiple mounting options for ease of installation and maintenance .
• Compatible with air and inert gas fluids for versatile industrial use .
• Supply valve maintains vacuum by energization for at least 20 ms before switching off, and release valve activates upon vacuum stop to protect the vacuum state in process interruptions .
• Nominal nozzle size options support various vacuum levels; this model typically matches nozzle sizes common to the ZK2A series for optimized vacuum generation .

This vacuum pump system is ideal for engineering and manufacturing professionals seeking a robust, valve-integrated vacuum unit without the energy-saving function, offering reliable vacuum retention, efficient ejector control, and reduced noise for precision industrial automation processes.
