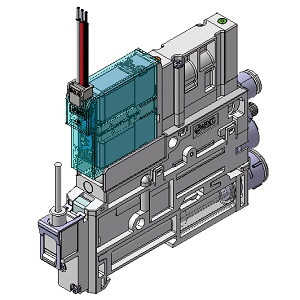

SMC ZK2P00K5NL2A-08-BCDJ ZK2A Series Vacuum Pump System Vacuum Unit Single Unit Vacuum Pump System + With Valve + Without Energy Saving Function

SMC ZK2P00K5NL2A-08-BCDJ ZK2A Series Vacuum Pump System Vacuum Unit Single Unit Vacuum Pump System + With Valve + Without Energy Saving Function

SMC
SKU:
ZK2P00K5NL2A-08-BCDJ
Availability:
Factory Stock
$133.60
Condition:
New
Current Stock:
Description

ZK2A Series Vacuum Pump System Vacuum Unit Single Unit Vacuum Pump System + With Valve + Without Energy Saving Function

  • Supply valve: An N.O. specification has been added. [New]; Can hold vacuum? even when the power goes out or is turned off; Prevents the sudden dropping of workpieces?; ? Supposing the supply pressure is being maintained;
  • An IO-Link compatible pressure switch has been added. [New]; Allows for ejector control with a single communication line; Reading of the device information and parameter batch settings are possible.;
  • Compatible with ejector systems and vacuum pump systems;
  • Energy saving ejector; Air supply is cut-off when vacuum is reached.; Air consumption: 93% reduction (Under SMC’s measurement conditions);
  • More efficient ejector: Suction flow increased by 50%; (Compared to other SMC 1-stage ejectors);
  • Energy saving efficiency: 93% reduction;
  • Improved low noise and suction flow by adoption of a high-noise reduction silencer
    • Additional Information
    Combination Of Supply Valve And Release Valve:
    Supply Valve:N.C.
    Rated Voltage:
    24 VDC
    Pressure Switch For Vacuum/Pressure Sensor:
    Without Pressure Switch For Vacuum/Pressure Sensor
    Connector:
    For Supply Valve/Release Valve: 300 mm(Connector Assembly)
    Vacuum (V) Port:
    ?8 mm
    Option a:
    Mounting Bracket For Single Unit(Nuts And Bolts Are Included)+Vacuum Pump System PE Port Female Thread Specification (M3)+With Individual Release Pressure Supply (PD) Port (M3)
    Option b:
    Vacuum Break Flow Adjusting Needle Round Lock Nut
