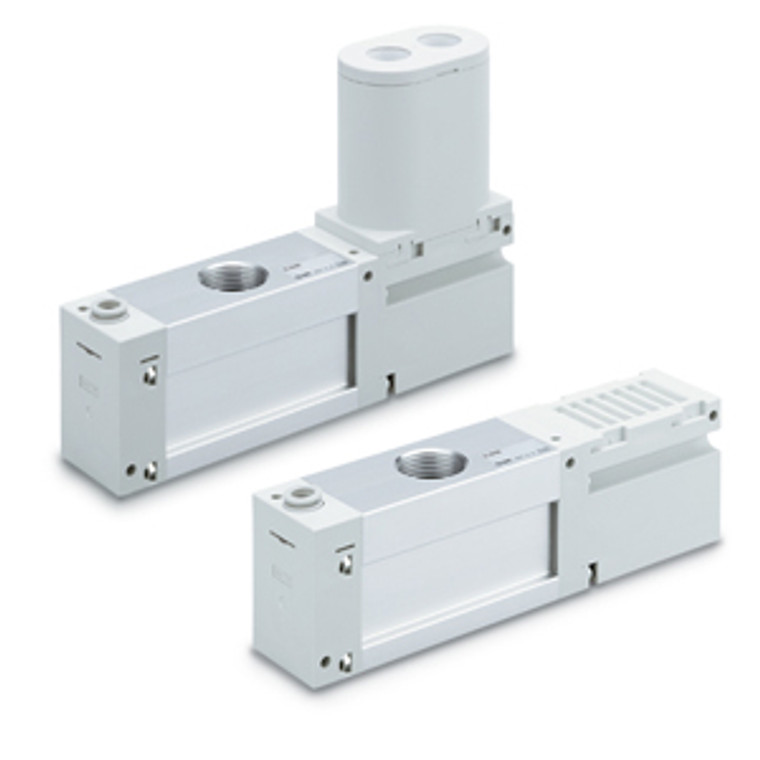

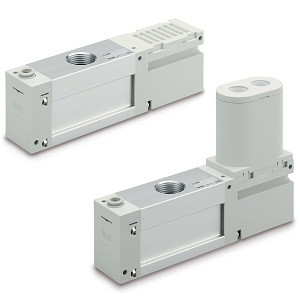

SMC ZL3HN06 ZL3/ZL6 Series Multistage Ejector Without Valve

The SMC ZL3HN06 multistage ejector is engineered for high-efficiency vacuum generation without integrated valves, optimized for industrial automation and manufacturing applications. Part of the ZL3/ZL6 series, it features a robust multistage design with a 3-stage diffuser and dual built-in ejectors, enabling superior suction flow performance.

• IO-Link Compatible Vacuum Pressure Switch: Integrated IO-Link communication enables seamless control and monitoring via a single line, supporting device information reading and batch parameter configuration for streamlined system integration.
• Maximum Suction Flow Rate Options: Available in three capacity variants delivering 100, 300, and 600 L/min (ANR), ensuring scalable vacuum performance tailored to specific manufacturing requirements.
• Significant Air Consumption Reduction: Incorporates an energy-saving vacuum pressure switch reducing air consumption by up to 91% compared to previous models, contributing to lower operating costs and enhanced sustainability.
• Lightweight Construction: Advanced design reduces weight by up to 60% versus earlier ZL112 models (from 450 g to 180 g), facilitating easier installation and improved mechanical handling within automated systems.
• Standard Supply Pressure and Port Configuration: Designed for a standard supply pressure of 0.5 MPa with Rc3/4 vacuum port and metric-size supply port 8 mm tubing compatibility, supporting integration into diverse pneumatic setups.
• Built-in Exhaust Silencer: Integrated silencer minimizes noise emissions for quieter operation on the production floor, optimizing the work environment.

This ejectors multistage, compact construction achieves up to a 250% increase in suction flow rate over single-stage devices, coupled with enhanced vacuum efficiency, making it ideal for high-demand vacuum applications such as material handling, pick-and-place, and packaging automation systems.
