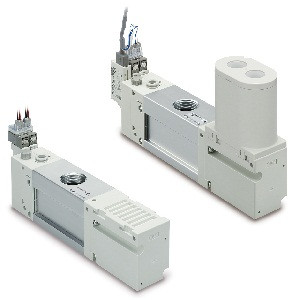

SMC ZL3HN06P-K15MOZ-EBG-B ZL3/ZL6 Series Multistage Ejector With Valve/Pressure Switch With Energy Saving Function

SMC ZL3HN06P-K15MOZ-EBG-B ZL3/ZL6 Series Multistage Ejector With Valve/Pressure Switch With Energy Saving Function

SMC
SKU:
ZL3HN06P-K15MOZ-EBG-B
$516.75
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

ZL3/ZL6 Series Multistage Ejector With Valve/Pressure Switch With Energy Saving Function

  • An IO-Link compatible vacuum pressure switch has been added. (ZL3, ZL6) [New]; Allows for ejector control with a single communication line; Reading of the device information and parameter batch settings are possible.;
  • Max. suction flow rate: 3 types available: 100, 300, and 600 L/min (ANR);
  • Air consumption: 91% reduction (ZL3, ZL6); Reduced by the pressure switch for vacuum with energy saving function and efficient ejectors;
  • Weight: Max. 60% reduction [ZL112 (Existing model): 450 g ? ZL1: 180 g]
    • Additional Information
    Max. Suction Flow Rate:
    300 L/min (ANR)
    Standard Supply Pressure:
    0.5 MPa
    Vacuum (2/V) Port Size/Supply (1/P) Port Applicable Tubing O.D.:
    Vacuum (2/V) Port:NPT3/4
    Exhaust:
    Port Exhaust (Rc1,G1,NPT1)
    Combination Of Supply Valve And Release Valve:
    Supply Valve (N.C.),Release Valve (N.C.)
    Rated Voltage:
    24 VDC
    Electrical Entry:
    M Plug Connector Without Connector
    With Light Surge Voltage Suppressor:
    With Light/Surge Voltage Suppressor
    Manual Override:
    Non-locking Push Type
    Vacuum Pressure Sensor:
    Vacuum Pressure Switch (Vacuum 2 Outputs)
    Output Specifications:
    PNP Open Collector
    Remote Sensor Unit:
    With Unit Switching Function Or Without Pressure Switch For Vacuum
    Lead Wire Specifications:
    Lead Wire With Connector (Length:2 m) (Included)
    Option:
    Adapter Assembly For Bottom Mounting (Included)
