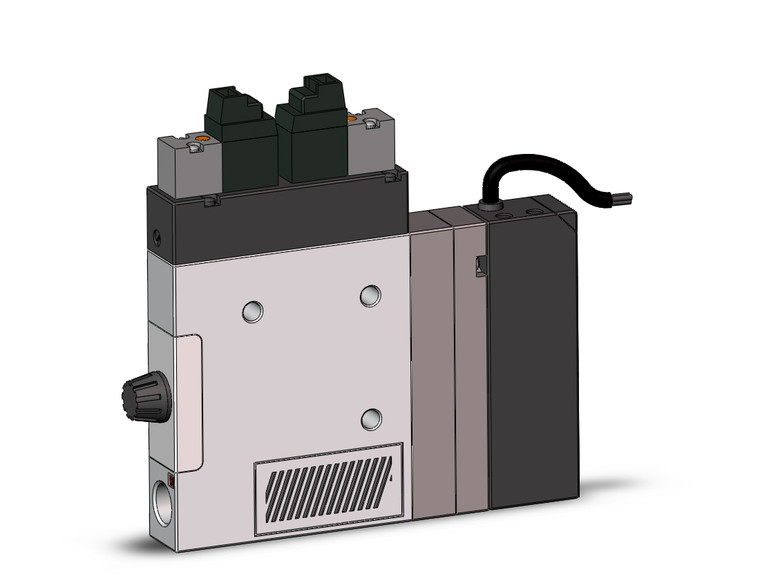

SMC ZM133H-K5LOZ-E18L Vacuum Ejector

SMC ZM133H-K5LOZ-E18L ZM Series Vacuum Ejector With Valve And Switch

SMC
SKU:
ZM133H-K5LOZ-E18L
$335.80
Condition:
New
Current Stock:
Description

ZM Series Vacuum Ejector With Valve And Switch

  • Valves and switches are unitized;
  • Adaptable for manifold application;
  • Maximum absorption flow rate is increased by 40%;
  • Maximum vacuum pressure -84 kPa
    • Additional Information
    Nozzle Diameter:
    1.3 mm
    Body Style:
    Manifold: With Common SUP Valve
    Vacuum Port Location:
    Side/Bottom Entry
    Standard Supply Pressure:
    0.5 MPa
    Thread Type:
    Rc
    Combination Of Supply Valve And Release Valve:
    Supply Valve (N.C.), And Release Valve
    Pilot Valve:
    DC: 1 W (With Indicator Light: 1.05 W)
    Solenoid Valve Rated Voltage:
    24 VDC
    Electrical Entry:
    L Plug Connector, Without Connector (Applicable To DC)
    Light/Surge Voltage Suppressor:
    With Light/Surge Voltage Suppressor
    Manual Override:
    Non-Locking Push Type
    Vacuum Switch Model:
    1 Output, Analog Output, 3 Rotation Setting (ZSE1)
    Vacuum Switch Electrical Entry:
    Grommet Type, With 3 m Lead Wire (ZSE1)
    Release Flow Rate Adjusting Needle:
    Without Lock Nut
    Made To Order:
    Standard
    CE/UKCA-compliant:
    -
