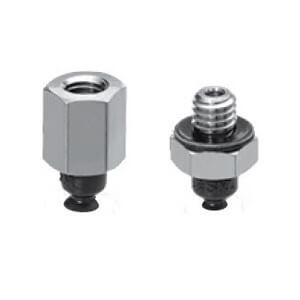

SMC ZP3-T06UMS-A10-04 Vacuum Pad with Adapter — Compact, Flat Type with Groove

The SMC ZP3-T06UMS-A10-04 is a high-performance vacuum pad from the ZP3 Series, specifically engineered for precision handling in industrial automation and manufacturing processes. This vacuum pad features a compact design with a significantly shortened overall length for space-efficient installation, optimized for environments with limited working space.

• Pad Diameter: Precisely sized at 6 mm, offering a balance of compactness and sufficient contact area for secure gripping.
• Pad Type: Flat type with a groove design, enhancing seal reliability on flat or slightly uneven workpiece surfaces, minimizing air leakage and maximizing grip stability.
• Adapter Integration: Equipped with a vertical vacuum inlet adapter suitable for 2 mm tubing, compatible with both one-touch fittings and barb fittings, enabling fast and secure pneumatic connections.
• Material and Construction: Manufactured with durable elastomeric materials (options include NBR, FKM, silicone rubber, and urethane rubber) to resist wear and provide long service life in demanding industrial settings.
• Space-saving Profile: The compact form factor reduces the installation footprint by up to 75% compared to conventional ZP series pads, while the vacuum inlet with adapter shortens overall length by approximately 9 mm, facilitating integration into tight assemblies.

This vacuum pad is ideal for applications requiring reliable suction gripping of flat, non-deformable objects where precise placement and reduced footprint are critical. The integrated adapter and compatibility with standard pneumatic tubing ensure streamlined system architecture and simplified maintenance.

Optimized for engineering and manufacturing professionals seeking a compact, reliable vacuum gripping solution with enhanced installation flexibility and enhanced grip integrity.
