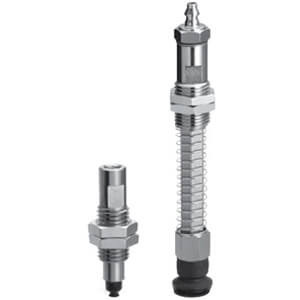

SMC ZP3-T08BNK10-B5 ZP3 Series Vacuum Pad With Buffer Compact Type ?4??6??8
SMC
$49.15
- Pad Diameter Range: Engineered with pad diameters from 4 mm to 8 mm, the ZP3-T08BNK10-B5 vacuum pad offers versatile gripping capability for precision vacuum handling applications.
- Compact Design with Buffer: The vacuum pad features a compact form factor with an integrated buffer to absorb shock and minimize impact forces during operation, enhancing durability and system longevity.
- Space-Saving Overall Length: Designed to reduce the overall length compared to conventional pads, enabling streamlined integration into tight spaces and improving machine footprint efficiency.
- Vertical Vacuum Inlet Configuration: Incorporates a vertical vacuum inlet designed for one-touch fittings or barb fittings compatible with 2 mm tubing, simplifying installation and maintenance.
- Material and Pad Type Options: Available in multiple pad forms including flat, flat with groove, and bellows designs, accommodating varying workpiece geometries and surface finishes to optimize vacuum adhesion.
- Technical Specifications: Constructed from durable rubber compounds suitable for industrial use, compatible with a maximum vacuum pressure around -80 kPa, ensuring reliable gripping force across diverse applications.
- Enhanced Performance: The buffer stroke capability provides improved absorption of mechanical shocks, typically up to 20 mm stroke, contributing to stable suction and reduced wear on connected components.
- Application Suitability: Ideal for automated assembly, pick-and-place systems, and other manufacturing environments requiring precision vacuum handling with minimized equipment space.
- Compliance and Certification: Meets RoHS standards for environmental safety and operational reliability in industrial settings.
- Keywords: SMC vacuum pad, ZP3 series suction cup, compact vacuum pad with buffer, 4mm - 8mm vacuum pad diameter, vertical vacuum inlet, one-touch fitting vacuum pad, industrial vacuum gripping solutions.
- Vacuum Inlet Direction:
- Vertical
- Pad Diameter:
- ?8 mm
- Pad Type:
- ?4??6??8:Bellows Type ?10??13??16:Bellows Type With Ribs
- Pad Material:
- NBR
- Buffer Specification:
- Non-rotating
- Buffer Stroke (mm):
- 10 mm
- Vacuum Inlet:
- M5X0.8 Female Thread
