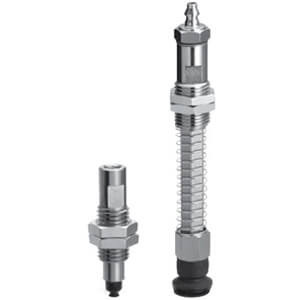

SMC ZP3-T10UMSK10-B5 Vacuum Pad - ZP3 Series Compact Flat Type with Groove and Buffer

The SMC ZP3-T10UMSK10-B5 is a high-performance vacuum pad from the ZP3 Series designed for precise and reliable handling in automation and manufacturing environments. This model features a compact flat pad with a groove and integrated buffer, engineered to optimize space without compromising adsorption stability or durability.

• Pad Diameter: 10 mm — suitable for applications requiring medium-sized suction areas with consistent gripping force.
• Compact Design: Overall length is reduced compared to traditional models, facilitating space-saving integration in tight assemblies and enabling more efficient machine layouts.
• Pad Type: Flat type with groove — the groove on the adsorption surface prevents sticking of delicate or slightly textured workpieces, enhancing easy removal and stable vacuum adhesion.
• Buffer Integration: Includes a built-in buffer that absorbs shock and deformation during vacuum gripping, extending the service life of both the pad and the workpiece by mitigating impact forces.
• Vacuum Inlet: Compatible with one-touch fittings and barb fittings for tubing of 2 mm diameter, allowing quick and secure vacuum line connections to minimize installation time and leaks.
• Materials and Compatibility: Constructed with durable elastomers typical for the ZP3 series (such as NBR or similar), ensuring chemical resistance and wear resistance for diverse industrial applications.

This vacuum pad is engineered according to SMC’s ZP3 series standards, providing excellent suction power with reduced footprint and enhanced durability, ideal for automated assembly, pick-and-place operations, and precision material handling tasks.
