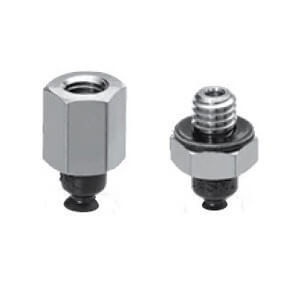

SMC ZP3-T13BS-A12-B5 Vacuum Pad with Adapter – Compact Type (ø4, ø6, ø8)

The SMC ZP3-T13BS-A12-B5 is part of the ZP3 Series of vacuum pads, designed for compactness and versatility in advanced industrial automation and manufacturing applications.

• Pad Diameter Range: Available in diameters of 4 mm, 6 mm, and 8 mm, enabling precise vacuum gripping on small to medium-sized components with minimal footprint.
• Compact, Space-Saving Design: The vacuum pad features a shortened overall length compared to conventional models, minimizing installation space and facilitating integration in confined or complex assembly systems.
• Vacuum Inlet with Adapter: Equipped with a vertical vacuum inlet fitted with an adapter, this model supports reliable and efficient vacuum delivery, ensuring consistent suction performance and ease of connection.
• Connection Options: Supports both one-touch fitting and barb fittings for Ø2 tubing, providing flexible and secure hose connections for streamlined pneumatic integration.
• Pad Types and Materials: Available in flat, flat with groove, and bellows pad shapes, constructed from durable materials including NBR, FKM, and silicone rubber, tailored for various surface conditions and vacuum requirements.
• Enhanced Durability and Performance: The pad design incorporates advances to prevent detachment from the adapter and features micro-dents and grooves on the adsorption surface to optimize grip and facilitate easy workpiece release.
• Industry Standards Compliance: Complies with RoHS directives, ensuring environmentally responsible manufacturing and usage.

This vacuum pad is ideal for applications requiring compact suction solutions with reliable performance in constrained spaces, such as electronic component handling, precision assembly, and packaging automation.
