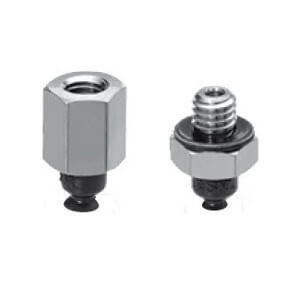

SMC ZP3-T13BS-B5 Vacuum Pad with Adapter – Compact Vertical Inlet, Bellows Type (ø4, 6, 8 mm)

The SMC ZP3-T13BS-B5 belongs to the ZP3 Series, featuring a compact vacuum pad with an integrated adapter for vertical vacuum inlet applications. Engineered for precision material handling and automation tasks, it supports pad diameters ranging from ø1.5 to ø16 mm, with this particular model optimized for ø4, ø6, and ø8 mm sizes.

• Compact Design: The vacuum pad is engineered to offer a significant space-saving solution by reducing the overall length compared to conventional models, enhancing installation flexibility in restricted spaces.
• Pad Specification: Bellows-type pad shape enables effective sealing on uneven or irregular surfaces, ensuring reliable adsorption and gentle handling of delicate workpieces.
• Vacuum Inlet and Connections: Equipped with a female-threaded adapter (M5 x 0.8), this pad supports vertical vacuum inlet configuration for streamlined pipe routing and easy integration.
• One-Touch and Barb Fittings Compatibility: The adapter accommodates both one-touch fitting and barb fitting options for tubing with outer diameter of ø2 mm, facilitating quick and secure vacuum line connections without additional tools.
• Material and Durability: Constructed with robust materials suitable for industrial environments, offering resistance to abrasion, oils, and aging, while maintaining consistent vacuum performance.
• Mounting and Application: Designed with a recessed mounting method and fixing boss enhances mounting repeatability and stability, suitable for automated assembly, picking, and packaging operations.

This vacuum pad’s combination of a bellows pad with a compact adapter and vertical inlet makes it ideal for applications requiring precise, space-efficient suction solutions with flexible tubing connectivity. Its compatibility with a range of pad diameters and fitting types ensures adaptability across diverse industrial tasks.
