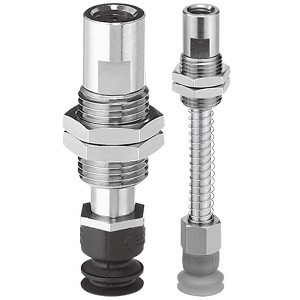

SMC ZP3-T16BNJ10-B5 ZP3 Series Vacuum Pad With Buffer Compact Type ?4??6??8

SMC ZP3-T16BNJ10-B5 Vacuum Pad – ZP3 Series with Buffer, Compact Type (Pad Ø4, 6, 8 mm)

This SMC ZP3-T16BNJ10-B5 vacuum pad is part of the ZP3 series, engineered for industrial automation and manufacturing processes requiring compact, high-performance vacuum handling.

• Pad Diameter Range: Designed for pad diameters from Ø1.5 mm up to Ø16 mm, with particular applicability for sizes Ø4, Ø6, and Ø8 mm, providing versatile sizing for various workpiece profiles and handling requirements.
• Compact Design: Features a compact and space-saving architecture with an overall length significantly shortened compared to earlier ZP series models, enabling integration into tight assembly lines and equipment with limited space.
• Vertical Vacuum Inlet: Equipped with a vertical vacuum inlet that supports both one-touch fittings and barb fittings for Ø2 tubing, facilitating rapid and secure connection to vacuum supply lines.
• Integrated Buffer: Includes an internal buffer mechanism designed to absorb shock and vibrations during operation, improving suction stability and workpiece handling reliability. Buffer stroke options typically include 3 to 20 mm for controlled cushioning.
• Pad Construction and Materials: Available in flat, flat with groove, and bellows pad types to match diverse surface textures and requirements. Pad materials generally include NBR, FKM, and silicone rubber variants, chosen for their durability, chemical resistance, and sealing performance.

Ideal for robotic gripping, pick-and-place automation, and precision vacuum handling in manufacturing sectors such as electronics, automotive, and packaging, the ZP3-T16BNJ10-B5 vacuum pad yields improved cycle times due to its reduced length and easy piping connections.
