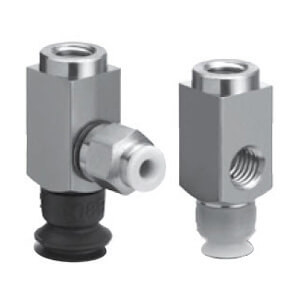

SMC ZP3-Y04BS-B5-B5 Vacuum Pad with Adapter - Compact Type, Ø4, Ø6, Ø8

The SMC ZP3-Y04BS-B5-B5 vacuum pad is part of the advanced ZP3 Series, engineered for applications requiring compact, space-efficient suction cups with reliable vacuum gripping performance. It features an integrated adapter for straightforward connection compatibility and enhanced installation flexibility.

• Pad Diameter Range: Designed to accommodate workpieces with pad diameters of Ø4, Ø6, and Ø8 mm, enabling precise handling of small to medium-sized objects in automated manufacturing and material handling systems.
• Compact, Space-Saving Design: The overall length of the vacuum pad is significantly shortened compared to conventional models, which reduces the installation footprint and allows integration into tight or confined spaces without compromising gripping force.
• Vacuum Inlet Connection: Equipped with one-touch fitting and barb fitting for Ø2 tubing, facilitating quick and secure pneumatic connections that simplify maintenance and replacement tasks.
• Pad Type and Material Options: Supports various pad forms including flat, flat with groove, and bellows types, made from industrial-grade materials such as NBR, FKM, and silicone rubber for durability and suitable compatibility with different surface textures and environmental conditions.
• Optimized for High Precision Automation: The compact pad’s reduced size combined with adapter integration ensures stable suction positioning and repeatability critical for high-speed robotic and assembly operations.
• Compliance and Quality: Manufactured in accordance with RoHS directives, guaranteeing environmentally compliant component materials and processes.

This vacuum pad is ideal for engineers and manufacturing professionals seeking reliable, technically advanced vacuum gripping solutions optimized for space-saving designs and quick installation in precision automation systems.
