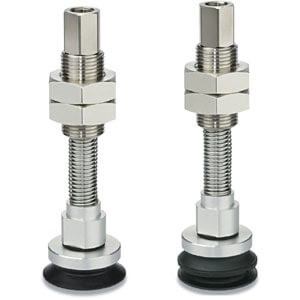

SMC ZP3E-T50BMNJB10 ZP3E Series High Rigidity Vacuum Pad (Vacuum Suction Cup) Bellows Type with Ribs and Groove and Buffer

The SMC ZP3E-T50BMNJB10 is a precision-engineered vacuum pad designed for high rigidity and stable suction performance in industrial automation and manufacturing applications. This model features a bellows-type pad incorporating ribs and groove patterns, enhancing surface conformity and suction stability on uneven or delicate workpiece surfaces.

• Stable Suction Position: The bellows design with integrated ribs and groove improves grip consistency by accommodating surface irregularities, minimizing the risk of slippage during transport and handling.
• Improved Ease of Removal: Optimized flexibility in the bellows structure enables smooth release of the pad from workpieces, enhancing cycle times and reducing risk of damage.
• Pad Form: Bellows type with ribs and groove offers enhanced adaptability compared to flat pads, suited for complex-shaped or sensitive parts requiring gentle handling.
• Mounting Options: Available with both male and female threaded connections, facilitating straightforward installation and interchangeability with various robotic arms or vacuum systems.
• Vacuum Inlet Direction: Designed for vertical vacuum inlet arrangements, allowing compact integration in automated systems with space constraints.
• Vacuum Inlet Connection: Male threaded vacuum inlet provides secure and leak-free attachment for vacuum lines, optimizing suction efficiency.
• Buffer Integration: Equipped with buffer stroke capability (10 mm stroke), the built-in buffer absorbs impact forces during contact, protecting both the vacuum pad and the workpiece, ensuring durability and extended service life.

Technical Specifications:

• Pad Diameter: 50 mm
• Pad Material: NBR (Nitrile Butadiene Rubber) – offers excellent wear resistance and improved sealing performance
• Compact design reduces overall profile height, enabling use in tight spaces
• Complies with RoHS standards for material safety and environmental compliance

This vacuum pad is ideal for precision material handling in electronics, automotive, and packaging industries where stable, reliable suction and gentle handling are critical. Its robust construction combined with buffer integration improves cycle reliability and reduces maintenance downtime, making it a preferred choice for automated pick-and-place operations.
